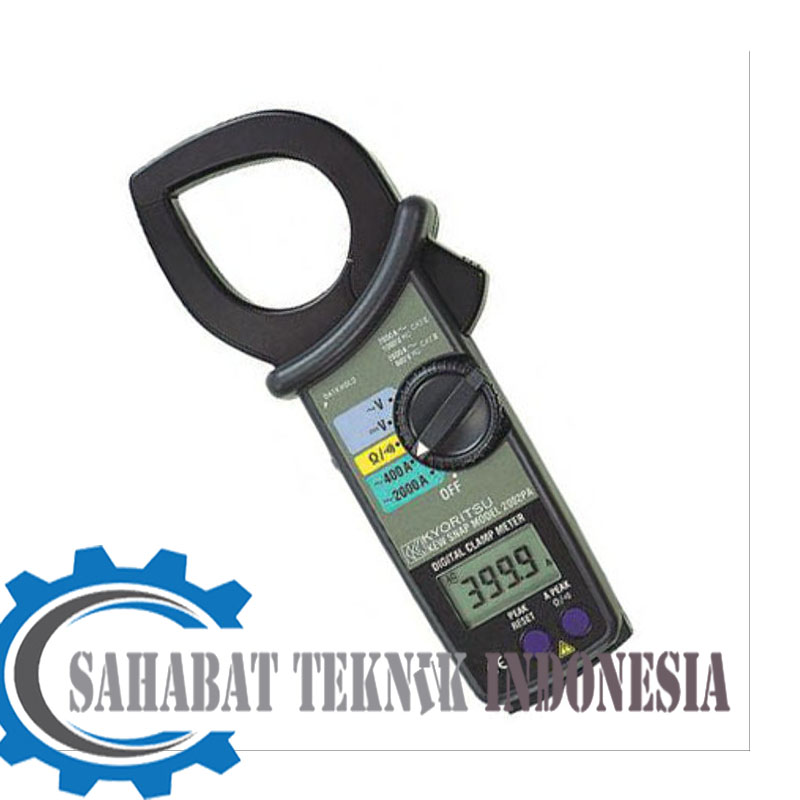

AC Digital Clamp Meters Kyoritsu Model 2002PA
Spesifikasi
• Can measure large AC current up to 2000A.
• Peak hold function.
• 55mm-dia large tear drop shaped jaws.
 |
 |
 |
 |
 |
 |
 |
 |
KATALOG : 2002PA_03A_09A-E kyoritsu
Deskripsi
Jual AC Digital Clamp Meters Kyoritsu Model 2002PA
Deskripsi Kyoritsu Model 2002PA
Digital Clap Meter AC (2000 Ampere) Kyoritsu 2002PA
– Can measure large AC current up to 2000A. m
– Peak hold function.
– 55mm-dia large tear drop shaped jaws.
AC A 400A (0 – 400A)
1g3dgt [50/60Hz]
2g3dgt [40Hz – 1kHz]
2000A (0 – 1500A)
1g3dgt [50/60Hz]
3g3dgt [40Hz – 1kHz]
2000A (1500 – 2000A)
3.0g [50/60Hz]
AC V 40/400/750V
1g2dgt [50/60Hz]
1.5g3dgt [40Hz – 1kHz]
DC V 40/400/1000V 1g2dgt
400/4k/40k/400k 1.5g2dgt
Continuity buzzer buzzer sounds below 5035
Conductor size 55mm max.
Frequency response 40Hz – 1kHz
Output Recorder :
DC400mV against AC400A
DC200mV against AC2000A
Safety Standard IEC 61010-1 CAT III 600V , CAT II 1000V
IEC 61010-2-031
IEC 61010-2-032
Power source R6 (AA) (1.5V) 2
Dimensions 247(L) 105(W) 49(D)mm
Weight 470g approx.
Included Accessories 7107A (Test leads)
8201 (Output Plug)
9094 (Carrying Case)
R6 (AA) 2
Instruction Manual
MODEL 2002PA
• Can measure large AC current up to 2000A.
• Peak hold function.
• 55mm-dia large tear drop shaped jaws.
|
|
|
|
|
|
|
|
