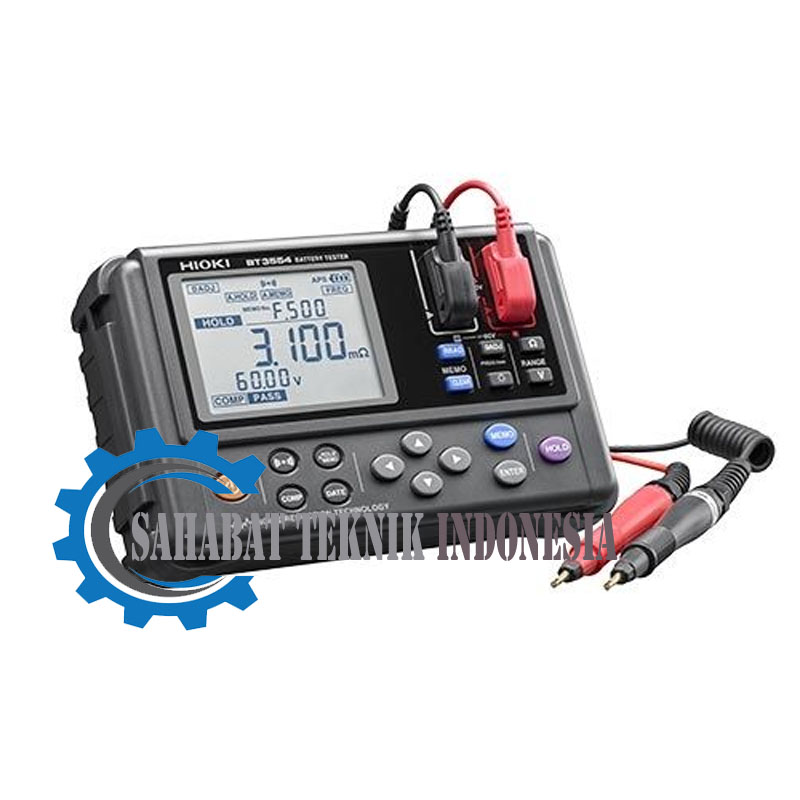

Jual Battery Tester HIOKI BT3554

BATTERY TESTER BT3554

Even Speedier Diagnosis of the Deterioration of Lead-acid Batteries

BRAND : HIOKI

Hioki portable battery testers support the maintenance of UPS and storage batteries critical to the life support of all businesses. The BT3554 battery internal resistance tester sets the standard for assessing the deterioration and remaining life of lead-acid batteries by giving a complete diagnosis via battery resistance testing. The BT3554-01 is built-in with Bluetooth® wireless technology for managing data on mobile devices.

Key Features
•    Measure and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554
•    Instantaneously diagnose degradation (PASS, CAUTION FAIL) by measuring internal resistance and voltage
•    Noise Reduction Technology improves noise resistance
•    Send or display measurement data in real-time via Bluetooth ® wireless technology

Notes
*Android, Google Play and the Google Play logo are trademarks of Google Inc.
*iOS is a registered trademark of Cisco Technology, Inc. and/or its affiliates in the United States and certain other countries.
*iPhone, iPad, iPad mini, iPad Pro and iPod touch are trademarks of Apple Inc.
*Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
*Microsoft, Windows, Windows Vista, and Excel are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
*Company names and Product names appearing in this catalog are trademarks or registered trademarks of various companies.
*The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HIOKI E.E. CORPORATION is under license.
*For the latest information about countries and regions where wireless operation is currently supported, please visit the Hioki website.

Kategori: ALAT INSTRUMENT, HIOKI Tag: Battery Tester HIOKI

Deskripsi

Deskripsi

Battery Tester HIOKI BT3554 :

Jual Battery Tester HIOKI BT3554, Penguji baterai portabel Hioki mendukung pemeliharaan UPS dan baterai penyimpanan yang penting untuk mendukung kehidupan semua bisnis. Penguji resistansi internal baterai BT3554 menetapkan standar untuk menilai kerusakan dan masa pakai UPS dan baterai asam timbal lainnya dengan memberikan diagnosis lengkap melalui pengujian ketahanan baterai.

Fitur Utama :
• Mengukur dan menyimpan data secepat 2 detik, peningkatan 60% dari legacy 3554
• Mendiagnosis degradasi baterai secara instan (LULUS, PERINGATAN, GAGAL) dengan mengukur resistansi dan tegangan internal
• Teknologi pengurangan kebisingan meningkatkan ketahanan terhadap kebisingan
• Pelindung baru menghasilkan daya cengkeram yang ergonomis dan daya tahan yang baik di lapangan.
• Juga tersedia: BT3554 dengan Teknologi Nirkabel Bluetooth®

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year) :

	BT3554, BT3554-10
Resistance measurement range	3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (max. display 3.100 Ω, resolution 1 mΩ), 4 ranges Accuracy: ±0.8 % rdg. ±6 dgt. (3 mΩ range: ±1.0 % rdg. ±8 dgt.) Testing source frequency: 1 kHz ±30 Hz, With function for avoiding noise frequency enabled: 1 kHz ±80 Hz, Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range), Open terminal Voltage: 5 V peak
Voltage measurement range	± 6 V (max. display ±6.000 V, resolution: 1 mV) to ± 60 V (max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg. ±6 dgt.
Absolute max. input voltage	60 V DC max. (No AC input)
Display update rate	Approx. 3 times/s
Comparator functions	Resistance warning limit / failure limit, and voltage warning limit setting; Number of comparator setting: 200 sets, Beeper sound, PASS/WARNING or FAIL
Data storage	Max. storable data: 6000 sets. (Saved items: Date, time, resistance value, voltage value, temperature, comparator setting values, and comparator judgement.)
Communication interface	Via USB (forward the data to the PC, bundled software) No Bluetooth® Wireless technology
Other functions	Temperature measurement (-10.0 to 60.0 °C), Zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock
Power supply	LR6 (AA) Alkaline dry battery ×8, Continuous operating time: 8.5 hr
Dimensions and mass	199 mm (7.83 in)W × 132 mm (5.20 in)H × 60.6 mm (2.39 in)D (with protector), 937 g (33.1 oz) (including batteries and protector)
Accessories	Zero adjustment board ×1, Instruction manual ×1, Application software CD ×1, Power-on option sticker ×1, Carrying case ×1, LR6 (AA) alkaline batteries ×8, Spare fuse ×1, USB cable ×1, Neck strap ×1, Protector ×1
	Pin Type Lead 9465-10 ×1 (Bundled with the BT3554), Pin Type Lead L2020 ×1 (Bundled with the BT3554-10)
