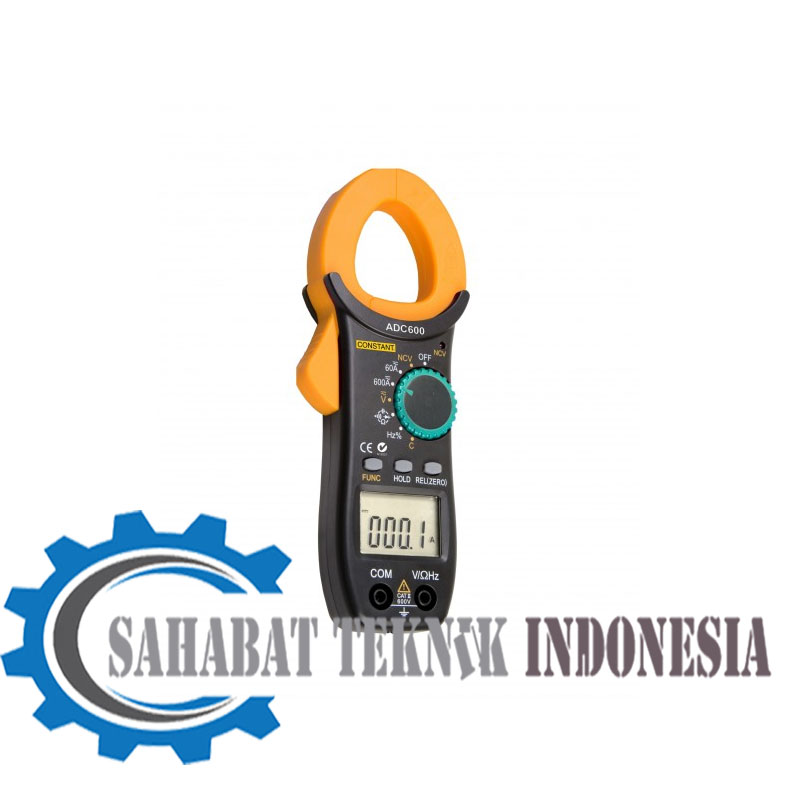

Jual Constant ADC600-DIGITAL CLMAP METER
SPESIFIKASI
Function Range Accuracy
AC Current 200A (1.9% rdg 5 dgts)
600A (1.9% rdg + 5 dgts)
DC Current 200A (1.9% rdg 5 dgts)
600A (1.9% rdg + 5 dgts)
AC Voltage 600V (1.2% rdg 5 dgts)
DC Voltage 20V (0.8% rdg 2 dgts)
600V (0.8% rdg + 2 dgts)
Input Impedance 10M (AC and DC Voltage)
Resistance 2k (1.0% rdg + 2 dgts)
Diode Read approximately forward voltage drop of the diode.
Continuity If continuity exists 50, built in buzzer will sound.
Display 3 digits, 1999 counts
Battery 9V
Size / Weight H213 x W75 x D32mm / Approx. 240g
Standard Accessories Test Leads, Soft Pouch, Battery, Manual
Deskripsi
Jual Constant ADC600-DIGITAL CLMAP METER
Deskripsi Constant ADC600 digital clamp meter AC/DC 600a tang ampere ADC 600 ORI
FITUR TANG AMPERE DIGITAL (DIGITAL CLAMP) METER CONSTANT ADC600 AC/DC 600 AMPERE
made in australia asli
bergaransi 1 tahun
42mm jaw opening
DMM function
Low battery indication
Only figure 1 for over range indication
Negative polarity indication
SPESIFIKASI
Function Range Accuracy
AC Current 200A (1.9% rdg 5 dgts)
600A (1.9% rdg + 5 dgts)
DC Current 200A (1.9% rdg 5 dgts)
600A (1.9% rdg + 5 dgts)
AC Voltage 600V (1.2% rdg 5 dgts)
DC Voltage 20V (0.8% rdg 2 dgts)
600V (0.8% rdg + 2 dgts)
Input Impedance 10M (AC and DC Voltage)
Resistance 2k (1.0% rdg + 2 dgts)
Diode Read approximately forward voltage drop of the diode.
Continuity If continuity exists 50, built in buzzer will sound.
Display 3 digits, 1999 counts
Battery 9V
Size / Weight H213 x W75 x D32mm / Approx. 240g
Standard Accessories Test Leads, Soft Pouch, Battery, Manual
