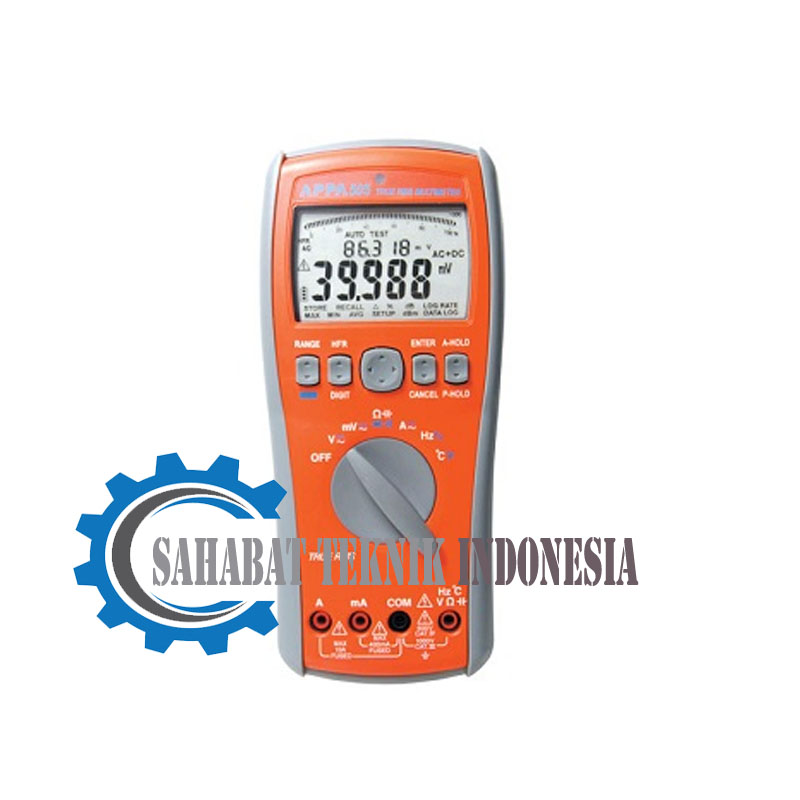

DIGITAL MULTIMETER APPA 505

Spesifikasi

40,000/4,000 count extra large digital display(503)

100,000/10,000 count extra large digital display(505)
43 segments analog bar graph
Auto Backlit, Dual display
Auto AC, DC and AC+DC on Voltage & Current mode with Frequency indication
Auto selection on Ohm, Diode or Continuity
0.03% DCV accuracy(503)
0.015% DCV accuracy(505)
True RMS reading on AC and AC+DC mode
On-Screen-Menu Selection
Navigator Key Drive
High Frequency Rejection (HFR)
Min/Max/Avg
Relative/% Function
Auto Hold/Peak Hold
Store/Recall memories
dBm/dB measurement
20000 records data logging capacity
USB interface with Software included
CAT IV 600V/CAT III 1000V standard

Kategori: , Tag:

Deskripsi

Digital Multimeter APPA  :

Jual Digital Multimeter APPA 505, Digital Display Counts: 10000 digits, 100000 digits
Basic VDC Accuracy: 0.015%
Basic Parameters: = V, ~ V, = A, ~ A, TRMS AC, TRMS AC+DC
Advanced Parameters: resistance, capacitance, frequency, duty cycle, continuity, diode, temperature, level (dB)
Additional Features: data hold mode, peak hold mode, relative mode, min/max function, store/recall function, datalogger function, analog bar graph, display with backlight, water/dust resistant, shock/drop resistant
Safety Categories: CAT III 1000V, CAT IV 600V
Interfaces: USB (optical)

Features :
APPA 503 APPA 505 APPA 506/506B APPA 507
Digital display 4,000 / 40,000 count 10,000 / 100,000 count 4,000 / 40,000 count 50,000 count
Analog Bar graph Segments 43 43 43 N/A
Self-Calibration v v v v
True RMS reading AC, AC+DC, HFR AC AC, AC+DC, HFR AC AC, AC+DC, HFR AC AC, AC+DC, HFR AC
Auto Backlit, Dual Display v v v v
Auto detect AC, DC and AC+DC on Voltage & Current mode with Frequency indiction v v N/A v
Auto Selection on Ohm, Capacitance, Diode or Continuity N/A v N/A N/A
On-Screen-Menu Selection v v v v
Navigator Key Drive v v v v
High Frequency Rejection (HFR) v v v v
Peak Hold v v v N/A
Auto Hold v v v v
MIN/MAX/AVG v v v v
Relative Mode v v v v
Duty Cycle v v N/A N/A
Store/Recall memoris 1000 1000 1000 100
dBm/dB measurement v v v N/A
Data Logging Capacity 20,000 20,000 40,000 N/A
Log rate setting v v v N/A
Optical interface v v v v
Automatic power shut off with selectable time v v v v
Beep Guard with Auto fuse detection v v v v
All weather housing v v v v
Full Accessories v v v v


SPECIFICATIONS:(All at 23°C±5°C, ≦ 80% R.H.) :
APPA 503 APPA 505 APPA 506/506B APPA 507
DCV： Ranges 40mV to 1000V 100mV to 1000V 40mV to 1000V 50mV to 1000V
Resolution 1uV 1uV 1uV 1uV
Basic Accuracy ±(0.03%+20d) ±(0.015%+20d) ±(0.03%+10d) ±(0.05%+5d)
ACV： Ranges 40mV to 1000V 100mV to 1000V 40mV to 1000V 50mV to 1000V
Resolution 1uV 1uV 1uV 1uV
Basic Accuracy ±(0.7%+50d) ±(0.4%+50d) ±(0.5%+20d) ±(0.5%+20d)
Bandwidth 40Hz to 100kHz 40Hz to 100kHz 40Hz to 100kHz 40Hz to 10kHz
Overload Protection：1000V rms v v v v
(AC+DC)V： Ranges & Resolution：Same as ACV, except Accuracy v v v v
Auto V-LoZ Range: 400.0V, 1000V N/A N/A v N/A
DCA： Ranges 40mA to 10A 10mA to 10A 40mA to 10A 50mA to 1A
Resolution 1uA 0.1uA 1uA 1uA
Basic Accuracy ±(0.2%+40d) ±(0.1%+40d) ±(0.2%+10d) ±(0.05%+5d)
Input Protection：440mA/1000V & 11A/1000V DC/AC high energy fuse v v v v
ACA： Ranges 40mA to 10A 10mA to 10A 40mA to 10A 50mA to 1A
Resolution 1uA 0.1uA 1uA 1uA
Basic Accuracy ±(0.8%+80d) ±(0.7%+80d) ±(0.8%+20d) ±(1.0%+20d)
Bandwidth 40Hz to 1kHz 40Hz to 1kHz 40Hz to 10kHz 40Hz to 10kHz
Input Protection：440mA/1000V & 11A/1000V DC/AC high energy fuse v v v v
(AC+DC)A： Ranges & Resolution：Same as ACA, except Accuracy v v v v
OHM： Ranges 400Ω to 40MΩ 1000Ω to 40MΩ 400Ω to 40MΩ 500Ω to 50MΩ
Resolution 0.01Ω 0.01Ω 0.01Ω 0.01Ω
Basic Accuracy ±(0.2%+30d) ±(0.025%+30d) ±(0.2%+10d) ±(0.2%+10d)
Continuity & Diode Test：  2kHz Tone Buzzer, Open Circuit Voltage：±3V <50Ω <50Ω 10Ω~50Ω(Adj) <30Ω
Frequency Counter： Ranges 40Hz to 4MHz 40Hz to 4MHz 400Hz to 100KHz 500Hz to 100KHz
Resolution 0.001Hz 0.001Hz 0.01Hz 0.01Hz
Basic Accuracy ±(0.002%+10d) ±(0.002%+10d) ±5d ±3d
Duty Factor： Ranges 20% to 80% 20% to 80% N/A N/A
Resolution 0.1% 0.1% N/A N/A
Basic Accuracy：5Hz to 10kHz, 5Vp-p ±(0.1%+10d) ±(0.1%+10d) N/A N/A
Capacitance： Ranges 4nF to 40mF 4nF to 40mF 40nF to 40mF N/A
Resolution 1pF 1pF 10pF N/A
Basic Accuracy ±(0.9%+2d) ±(0.8%+2d) ±(0.9%+2d) N/A
℃ / ℉ Ranges -200℃ to 1200℃ -200℃ to 1200℃ -200℃ to 1200℃ N/A
Resolution：0.1℃, Basic Accuracy：±(1%+1℃) v v v N/A
Overload Protection：1000V rms v v v N/A
Output： Ranges N/A N/A N/A 0mA to 24mA
Source Mode Resolution N/A N/A N/A 1uA
(Int. Battery Operation) Basic Accuracy N/A N/A N/A ±(0.05%+5d)
Driver N/A N/A N/A >24V / 24mA
Output： Ranges N/A N/A N/A 0mA to 24mA
Simulate  Mode Resolution N/A N/A N/A 1uA
(Ext. 24V Loop Supply) Basic Accuracy N/A N/A N/A ±(0.05%+5d)
Driver N/A N/A N/A >24V / 24mA
Output： Ranges N/A N/A N/A 50mA
Loop Power  Mode Resolution N/A N/A N/A 1uA
Basic Accuracy N/A N/A N/A ±(0.05%+5d)
Driver N/A N/A N/A >24V /1.25KΩ

GENERAL :
APPA 503 APPA 505 APPA 506/506B APPA 507
Sampling Rate： 3times/sec 3times/sec 10times/sec 10times/sec
Overload Indication：”OL” or “-OL” v v v v
Low Battery Indication
Auto Power Off : 30 minutes 30 minutes 10 minutes 20 minutes
Operating Temperature : -10℃~50℃, ≦80%RH v v v v
Storage Temperature : -20℃~60℃ v v v v
Temperature Coefficient : 0.15(Spec.Acc)/℃, <18℃ or >28℃ v v v v
Safety : IEC 61010 and designed to meet UL61010 specifications CAT. IV. 600V, CAT. III 1000V CAT. IV. 600V, CAT. III 1000V CAT. IV. 600V, CAT. III 1000V CAT. IV. 600V, CAT. III 1000V
Power Requirement：AA Size 1.5V x 4 batteries (NEDA 15A or IEC LR6) v v v v
Battery Life：In hours (Alkaline battery)I 100 100 50 100
Size：95mm(W) x 207mm(L) x 52mm(H), without holster v v v v
Weight：In grams (with holster) 630 630 630 630
Accessories：Test Leads, Alligator Clips, Temp. daptor, Bead probe, Protective Holster, USB cable,
Software, Magnetic Hanging Kit, Alkaline batteries (installed) and manual		 v v v v

Specification subject to change without notice.

APPA Connect APP :

APPA 506B dengan Bluetooth Ver. Fitur 4.0 untuk streaming data melalui iOS / Android APP pada perangkat seluler apa pun untuk menyediakan Akuisisi dan Analisis Data yang mudah.

ALL-WEATHER HOUSING :

Didesain untuk lingkungan yang keras dengan gasket kedap air karena sakelar putar jahitan, terminal input, dan penutup baterai untuk menghindari debu, kotoran, dan percikan. Mereka juga dapat menerima guncangan dan tetes, bekerja di mana saja dari indoor ke outdoor.

AUTOMATICALLY VOLTAGE DETECT WITH LOW IMPEDANCE :

Special designed LoZ(Low Impedance) feature to prevent false reading caused by ghost voltages.(506, 506B)

PERLINDUNGAN EKSTRA :

Sarung pelindung bentuk ramping yang dirancang secara ergonomis yang mencakup dudukan miring, pengait kuku, dan penyimpanan uji timah yang praktis. Sarung ini memberikan tingkat perlindungan dan kenyamanan ekstra untuk meteran Anda
