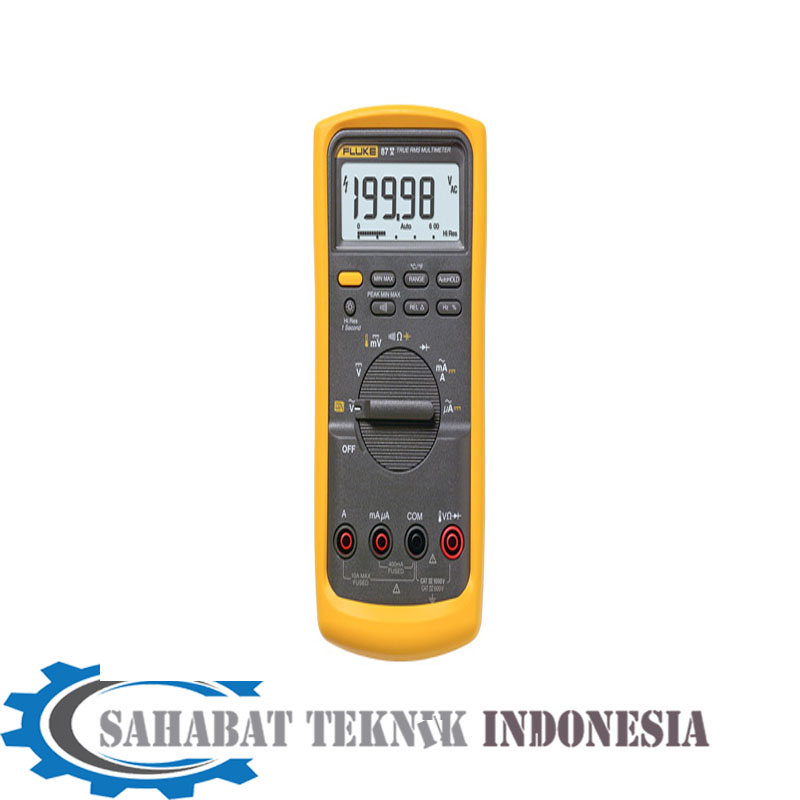

Jual Fluke 87V Industrial Multimeter
Specifications: Fluke 87V Industrial Multimeter
| Specifications | ||
| Voltage DC | Maximum voltage | 1000 V |
| Accuracy | ±(0.05% + 1) | |
| Maximum resolution | 10 µV | |
| Voltage AC | Maximum voltage | 1000 V |
| Accuracy | ±(0.7% + 2) True RMS | |
| AC bandwidth | 20 kHz with low pass filter; 3 dB @ 1 kHz | |
| Maximum resolution | 0.1 mV | |
| Current DC | Maximum amps | 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(0.2% + 2) | |
| Maximum resolution | 0.01 µA | |
| Current AC | Maximum amps | 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(1.0% + 2) True RMS | |
| Maximum resolution | 0.1 µA | |
| Resistance | Maximum resistance | 50 MΩ |
| Accuracy | ±(0.2% + 1) | |
| Maximum resolution | 0.1 Ω | |
| Capacitance | Maximum capacitance | 9,999 µF |
| accuracy | ±(1% + 2) | |
| Maximum resolution | 0.01 nF | |
| Frequency | Maximum frequency | 200 kHz |
| Accuracy | ±(0.005% + 1) | |
| Maximum resolution | 0.01 Hz | |
| Duty cycle | Maximum duty cycle | 99.9% |
| Accuracy | ±(0.2% per kHz + 0.1%) | |
| Maximum resolution | 0.1% | |
| Temperature measurement | –200.0 °C – 1090 °C –328.0 °F – 1994.0 °F excluding probe |
|
| 80 BK temperature probe | –40.0 °C – 260 °C –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater |
|
| Conductance | Maximum conductance | 60.00 nS |
| Accuracy | ±(1.0% + 10) | |
| Maximum resolution | 0.01 nS | |
| Diode | Range | 3 V |
| Resolution | 1 mV | |
| Accuracy | ±(2% + 1) | |
| Duty cycle range | Accuracy | Within ±(0.2% per kHz + 0.1%) |
| Environmental Specifications | ||
| Operating temperature | –20 °C to + 55 °C | |
| Storage temperature | –40 °C to + 60 °C | |
| Humidity (without condensation) | 0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C) |
|
| Operating Altitude | 2000 m | |
| Safety Specifications | ||
| Overvoltage category | EN 61010–1 to 1000 V CAT III, 600V CAT IV | |
| Agency approvals | CE, CSA, RCM | |
| Mechanical and General Specifications | ||
| Size | 201 x 98 x 52 mm (with holster) | |
| Weight | 355 g 624 g – with holster |
|
| Display | Digital | 6000 counts updates 4/sec. 19,999 counts in high–resolution mode |
| Analog | 32 segments, updates 40/sec | |
| Frequency | 19,999 counts, updates 3/sec at > 10 Hz | |
| Warranty | Lifetime | |
| Battery Life | Alkaline | ~400 hours typical, without backlight |
| Shock | 1 Meter drop per IEC 61010–1:2001 | |
| Vibration | Per MIL–PRF–28800 for a Class 2 instrument | |
Deskripsi
Jual Fluke 87V Industrial Multimeter
Deskripsi Industrial Multimeter Fluke 87V
luke 87V Multimeter Industri
Identifikasi masalah sinyal yang kompleks dengan cepat
Mendukung pengukuran yang akurat pada VFD menggunakan filter low-pass
Menangkap intermiten secepat 250 μS dengan Peak Capture
Fluke 87V Multimeter Industri
Fluke 87V Industrial Multimeter memberikan resolusi dan akurasi untuk memecahkan masalah drive motor, otomatisasi pabrik, distribusi daya, dan peralatan elektromekanis secara efisien bahkan di lokasi yang keras, berenergi tinggi, dan tinggi.
Identifikasi masalah listrik yang kompleks dengan cepat
Mendukung pengukuran yang akurat pada VFD menggunakan filter low-pass
Menangkap intermiten secepat 250 μS dengan Peak Capture
Memblokir noise frekuensi tinggi, energi tinggi yang dihasilkan oleh sistem drive besar dengan pelindung yang dirancang khusus
Sarung yang dapat dilepas dengan penyimpanan uji timah dan probe bawaan untuk kenyamanan
Tahan probe selama pengujian agar lebih mudah dilihat
Menawarkan mode relatif untuk menghilangkan gangguan sadapan uji dari pengukuran ohm rendah
Meningkatkan akurasi pengukuran resistansi rendah
Fitur keamanan
Semua input dalam 87V diperbarui ke edisi ketiga EN 61010-1 hingga 1000 V CAT III dan 600 V CAT IV
Dirancang untuk menahan paku lebih dari 8000 V
Input Peringatan Peringatan terdengar terhadap penggunaan salah jack input
Fitur alat tambahan
Dirancang dan dibangun di A.S.
Dilengkapi dengan garansi seumur hidup
Pintu akses mudah untuk penggantian baterai cepat tanpa merusak segel kalibrasi
6.000 hitungan, resolusi 3-3 / 4 digit, atau 20.000 hitungan, 4-1 / 2 digit — resolusi
Sesuai dengan gantungan magnetik opsional untuk pemasangan dan pengaturan yang mudah sambil membebaskan tangan Anda untuk tugas-tugas lain
Termasuk grafik batang analog untuk sinyal yang berubah cepat atau tidak stabil
Mempersembahkan tampilan digit besar dengan cahaya latar dua tingkat yang terang untuk memudahkan pembacaan dalam cahaya rendah
Menghadirkan akurasi DC 0,05%
Menyediakan rentang kapasitansi 10.000 µF untuk komponen dan penutup motor
Mulai otomatis dan manual untuk fleksibilitas maksimum
Menahan pembacaan pada tampilan untuk penglihatan yang aman setelah mengeluarkan probe menggunakan teknologi Touch Hold
