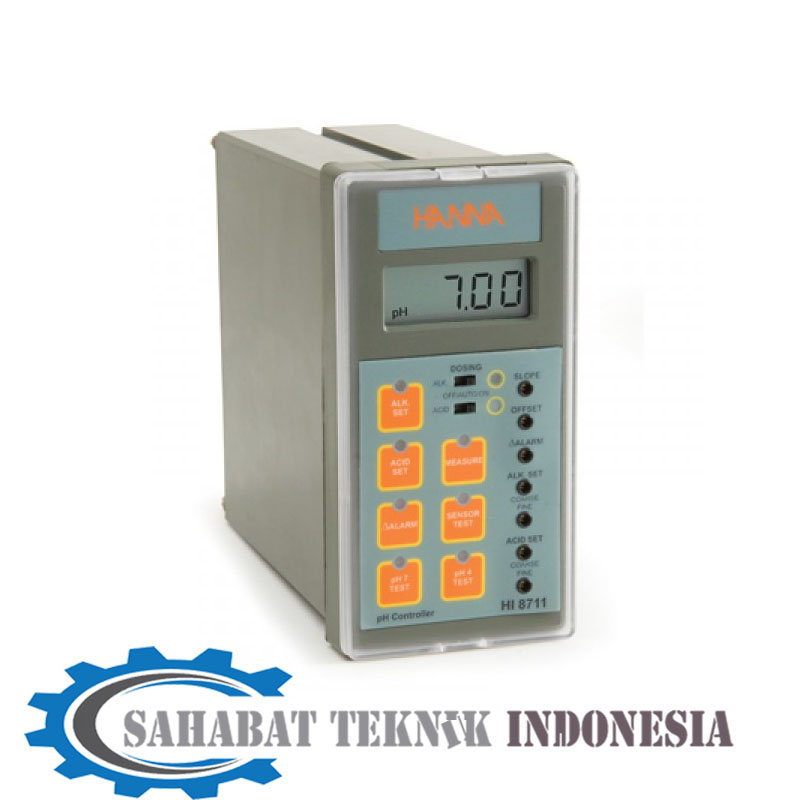

Jual Hanna HI8711 Dual Setpoint – pH analog Controller with 4 to 20mA
Specification :
| Range | 0.00 to 14.00 pH | |
| Resolution | 0.01 pH | |
| Accuracy @ 20 °C |
±0.02 pH (0 to 100 °C) ±0.05 pH (-20 to 0 °C) ±0.5% (input from transmitter) |
|
| Input | high impedance 1012 Ohm; reference and matching pin inputs are available; 4-20 mA | |
| Power Output | ±5 Vcc; 150 mA max load for amplified electrodes | |
| Calibration | offset: ±2 pH with OFFSET trimmer slope: 80 to 110% with SLOPE trimmer |
|
| Temperature Compensation |
fixed or automatic with Pt100, from -20 to 100°C (-4 to 212°F) | |
| Recorder Output | 0-20 mA or 4-20 mA (isolated) | |
| Setpoint Relay | 2, isolated, 2 A, max 240 V, resistive load, 1000000 strokes (not fuse protected) | |
| Setpoint Range | alk. set: from 0.00 to 14.00 pH acid set: from 0.00 to 14.00 pH |
|
| Alarm Relay | 1, isolated, 2 A, max 240 V, resistive load, 1000000 strokes (not fuse protected) | |
| Alarm Range | 0.2 to 3.00 pH | |
| Dosing Control | OFF/AUTO/ON with selection switch | |
| Over Dosing Control | adjustable, from 5 min to 60 min with knob or disable by wire strap – on rear panel | |
| Backlight | continuous on | |
| Power Supply | 115 VAC ±10% or 230 VAC ±10%; 50/60 Hz | |
| Enclosure | flame retardant ABS body and front panel; transparent splash-proof front cover | |
| Environment | -10 to 50°C (14 to 122°F); RH max 95% non-condensing | |
| Panel Cutout | 141 x 69 mm (5.6 x 2.7″) | |
| Weight | 1 kg (2.2 lb.) |
Deskripsi
Jual Hanna HI8711 Dual Setpoint – pH analog Controller with 4 to 20mA
Deskripsi
Informasi produk “HI8711 Dual Setpoint – Pengontrol analog pH dengan 4 hingga 20mA”
Input: Konektor BNC, koneksi kawat langsung dengan probe yang diperkuat (mendukung probe seri 1006 HI) dan 4-20 mA dari pemancar
Diagnostik otomatis untuk memverifikasi kalibrasi offset dan kemiringan serta kontaminasi / deteriorasi elektroda
Manual yang dipilih ON, OFF dan kontrol dosis otomatis untuk dosis alkali, asam dan REDOX dengan indikator
Titik setel ganda dengan dua output takaran independen
Kisaran kompensasi suhu diperpanjang: -20 hingga 100 ° C
Mendukung koneksi pin yang cocok
Output 4-20 dan 0-20 mA
± output 5V untuk elektroda yang diperkuat
Fungsi Gagal Aman – relai alarm diaktifkan saat daya mati
Indikator LED mode operasional
LCD backlit
Penutup tahan percikan transparan
HI 8711 memungkinkan pemilihan dua set point dengan dua output independen untuk dosis asam dan alkali.
Setiap model menerima input langsung dari elektroda pH atau ORP atau dari pemancar melalui input 4-20 mA. Instrumen ini juga menyediakan output daya ± 5V dan terminal input untuk elektroda yang diperkuat. Selain itu, Anda dapat memilih konfigurasi output untuk menghubungkan perekam atau PLC, antara 0-20 atau 4-20 mA.
HI 8711 menggabungkan perlindungan dosis lembur yang bisa disesuaikan dari 5 hingga 60 menit. Jika dosis melebihi waktu yang dipilih, alarm akan dipicu dan kontak dosis akan dinonaktifkan. Fitur ini dapat diaktifkan atau dinonaktifkan.
Specification :
| Range | 0.00 to 14.00 pH | |
| Resolution | 0.01 pH | |
| Accuracy @ 20 °C |
±0.02 pH (0 to 100 °C) ±0.05 pH (-20 to 0 °C) ±0.5% (input from transmitter) |
|
| Input | high impedance 1012 Ohm; reference and matching pin inputs are available; 4-20 mA | |
| Power Output | ±5 Vcc; 150 mA max load for amplified electrodes | |
| Calibration | offset: ±2 pH with OFFSET trimmer slope: 80 to 110% with SLOPE trimmer |
|
| Temperature Compensation |
fixed or automatic with Pt100, from -20 to 100°C (-4 to 212°F) | |
| Recorder Output | 0-20 mA or 4-20 mA (isolated) | |
| Setpoint Relay | 2, isolated, 2 A, max 240 V, resistive load, 1000000 strokes (not fuse protected) | |
| Setpoint Range | alk. set: from 0.00 to 14.00 pH acid set: from 0.00 to 14.00 pH |
|
| Alarm Relay | 1, isolated, 2 A, max 240 V, resistive load, 1000000 strokes (not fuse protected) | |
| Alarm Range | 0.2 to 3.00 pH | |
| Dosing Control | OFF/AUTO/ON with selection switch | |
| Over Dosing Control | adjustable, from 5 min to 60 min with knob or disable by wire strap – on rear panel | |
| Backlight | continuous on | |
| Power Supply | 115 VAC ±10% or 230 VAC ±10%; 50/60 Hz | |
| Enclosure | flame retardant ABS body and front panel; transparent splash-proof front cover | |
| Environment | -10 to 50°C (14 to 122°F); RH max 95% non-condensing | |
| Panel Cutout | 141 x 69 mm (5.6 x 2.7″) | |
| Weight | 1 kg (2.2 lb.) |
