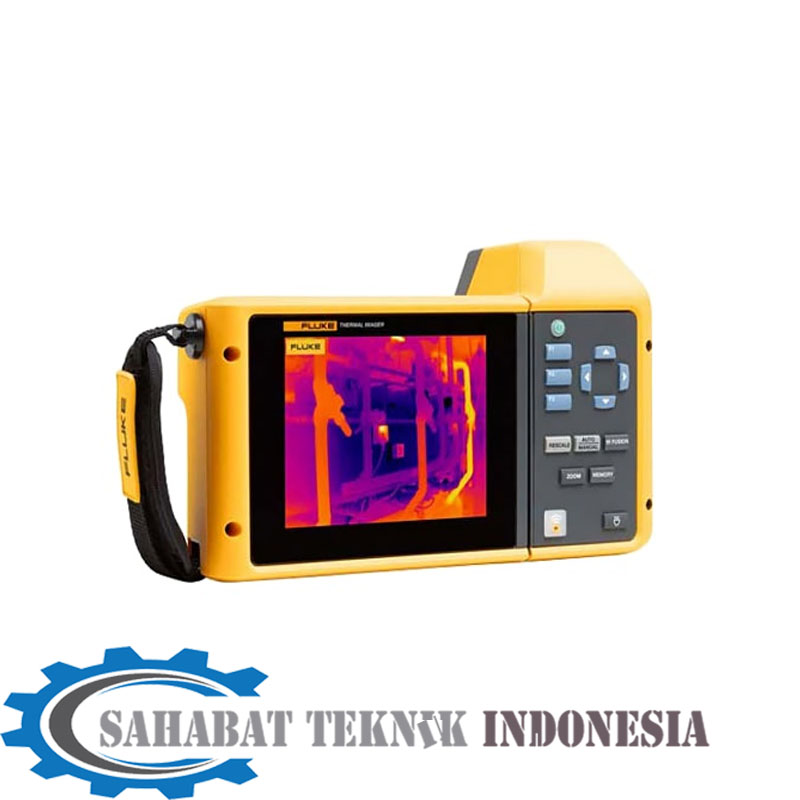

Jual Infrared Camera Fluke TiX580
Specifications: Fluke TiX580 Infrared Camera
| Key features | |
| IFOV with standard lens (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Detector resolution | 640 x 480 (307,200 pixels) |
| SuperResolution | Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images. Every. Single. Time. |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Touchscreen display (capacitive) | 5.7 inch (14.4 cm) landscape 640 x 480 LCD |
| Rugged, ergonomic design | 240 ° rotatable (articulating) lens |
| Digital zoom | 2x, 4x, and 8x |
| Pre-calibrated Lenses | wide angle, 2x telephoto, 4x telephoto and 25 micron/macro |
| Temperature measurement | |
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to 1000 °C (-4 °F to 1832 °F) |
| Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
| Thermal sensitivity (NETD)* | ≤ 0.05 °C at 30 °C target temp (50 mK) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| Live line marker | Yes |
| *Best possible | |
| Wireless connectivity | |
| To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) | |
| Fluke Connect® app compatible | Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect Assets optional software | Yes, assign images to assets and create work orders. Easily compare measurement types – whether mechanical, electrical or infrared images – in one location. |
| Fluke Connect Instant Upload | Yes, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
| Fluke Connect tool compatible | Yes, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen. Five simultaneous connections supported. |
| Fluke Connect SmartView desktop software | Yes |
| IR-Fusion® technology | |
| Adds the context of the visible details to your infrared image | |
| AutoBlend™ mode | Continuously variable |
| Picture-In-Picture (PIP) | 100%, 75%, 50%, 25% IR |
| Built-in digital camera (visible light) | 5 MP |
| Lenses | ||
| Standard lens | IFOV (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Field of view | 34 °H x 24 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Picture-in-picture and full screen | |
| Optional 2x telephoto smart lens | IFOV | 0.33 mRad. D:S is 2145.1 |
| Field of view | 12 °H x 8.5 °V | |
| Minimum focus distance | 45 cm (approx. 18 in) | |
| IR-Fusion® technology | Picture-in-picture and full screen | |
| Optional wide-angle smart lens | IFOV | 1.85 mRad, D:S is 525:1 |
| Field of view | 48 °H x 34 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Full screen | |
| Level and span | |
| Smooth auto and manual scaling | |
| Touchscreen adjustable level/span | Yes. Span and level can be easily and quickly set by simply touching the screen |
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
| Data storage and image capture | |
| Extensive memory options | Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage. |
| Image file formats | Non-radiometric (.bmp, .jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files |
| Memory review | Thumbnail and fullscreen review |
| Software | Fluke Connect SmartView software – full analysis and reporting software and Fluke Connect system |
| Export file formats with Fluke Connect software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera |
| IR-PhotoNotes™ | Yes (5 images) |
| Advanced text annotation | Yes. Including standard shortcuts as well as user programmable options |
| Video recording | Standard and radiometric |
| File formats video | Non-radiometric (MPEG – encoded .AVI) and fully-radiometric (.IS3) |
| Remote display viewing | Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor |
| Remote control operation | Yes, through Fluke Connect SmartView desktop software or Fluke Connect mobile app |
| Auto capture (temperature and interval) | Yes |
| MATLAB® and LabVIEW® tool boxes | Integrate camera data, infrared video and images into these software platforms to support R&D analysis |
| Battery | |
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life | 2-3 hours per battery (Actual life varies depending on settings and usage) |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable sleep and power off modes |
| Color palettes | |
| Standard palettes | 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
| General specifications | |
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | 3 user-definable spot markers |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp display |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10% to 95% non-condensing |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15 Subpart B |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-29 |
| Drop | 25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens |
| Size (H x W x L) | 27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in) |
| Weight (battery included) | 1.54 kg (3.4 lb) |
| Enclosure rating | IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
Deskripsi
Jual Infrared Camera Fluke TiX580
Deskripsi Fluke TiX580 Infrared Camera
Fluke TiX580 Kamera Inframerah
Kamera pencitraan termal 640 x 480 yang direkayasa luar biasa
Menyediakan layar sentuh LCD responsif 5,7 inci yang besar dengan area tampilan 150% lebih banyak daripada layar 3,5 inci
Fitur layar putar 240 ° untuk fleksibilitas pemotretan yang tak tertandingi
Memberikan 4x data piksel dengan SuperResolution pada kamera untuk membuat gambar beresolusi 1280 x 960
Tunduk pada Kontrol Ekspor
Tinjauan produk: Kamera Inframerah Fluke TiX580
Apakah semua orang di pabrik berpaling kepada Anda? Apakah Anda orang yang dengan cepat dapat mengumpulkan fakta, memahami masalah dan membentuk proses dan prosedur untuk memenuhi keputusan mahal secara langsung? Jika demikian, Anda memerlukan kamera inframerah yang fleksibel dan berorientasi pada detail seperti Anda. Itulah sebabnya TiX580 harus selalu dalam jangkauan lengan. Hari Anda dapat membawa Anda ke mana saja:
Laboratorium R&D
Lantai produksi
Di luar situs, lokasi terpencil
Jalur transmisi dan distribusi (gardu)
Dari jaminan kualitas hingga pemeliharaan preventif dan inspeksi luar, setiap hari dapat menghadirkan lingkungan yang berbeda dan tantangan berbeda untuk pencitraan termal Anda. Dengan tingkat perincian yang tak tertandingi dalam setiap gambar inframerah dan kemampuan untuk menangkap gambar berkualitas dari objek apakah mereka kecil dan dekat dengan overhead besar dan jauh. Desain dan tali leher yang ergonomis memudahkan hari inspeksi yang panjang. Di luar layar yang berputar memungkinkan Anda menyesuaikan diri untuk meminimalkan silau dan layar sentuh memberikan pengalaman menonton di lapangan yang premium. TiX580 memiliki alat yang mengakomodasi lingkungan Anda.
Grafik suhu waktu-nyata
Rekaman video radiometrik
Ambil urutan gambar secara otomatis
Kemampuan integrasi MatLab dan LabView
Dapatkan hasil maksimal dari TiX580 Anda dengan perangkat lunak desktop Fluke Connect ™. Buat laporan profesional dalam hitungan menit sementara ef
Edit dan optimalkan gambar
Gabungkan gambar inframerah dan yang terlihat untuk analisis yang lebih sederhana
Buat laporan terperinci
Atur dan cari gambar berdasarkan aset, tingkat keparahan, dan judul
