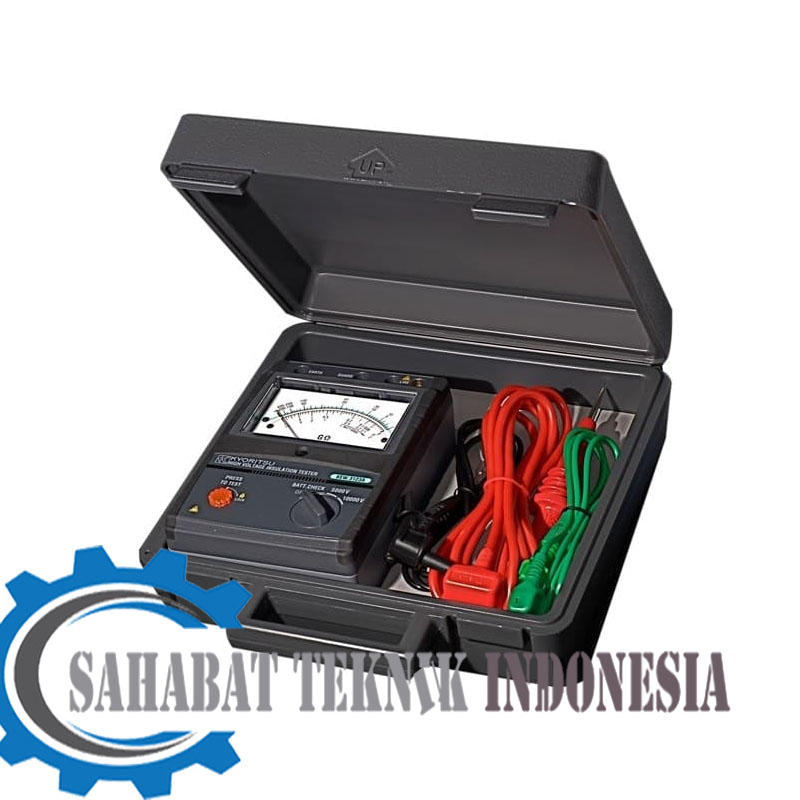

Jual Kyoritsu- High Voltage Insulation Testers Model 3123A
Spesifikasi Kyoritsu- High Voltage Insulation Testers Model 3123A
- Model Number : 3123A
- Uji Tegangan DC : 5000/10000V
- Resistance Range : 5G/200G (Auto-ranging) (5000V), 10G/400G (Auto-ranging) (10000V)
- Power Source : R6 (AA) (1.5V) x8
- Dimension (LxWxD) : 200x140x80 mm
- Contents Included : 7165A (Line probe) (3m); 7224A (Earth cord) (1.5m); 7225A (Guard code) (1.5m); 8019 (Hook type prod); 9158 (Hard case) R6 (AA) x8; Instruction manual
Deskripsi
Jual Kyoritsu- High Voltage Insulation Testers Model 3123A
Deskripsi Kyoritsu- High Voltage Insulation Testers Model 3123A
• Rugged design with a hard carrying case for field use
• Detachable High Voltage Line probe
• Automatic ranges, high and low scales, indicated by different LED’s
• Drip proof
Spesifikasi
Insulation Resistance
| DC Test Voltage | 5000/10000V |
|---|---|
| Measuring ranges (automatic change) |
5GΩ/200GΩ (Auto-ranging) (5000V) 10GΩ/400GΩ (Auto-ranging) (10000V) |
| First effective measuring range | 0.2 – 100GΩ (5000V) 0.4 – 200GΩ (10000V) |
| Accuracy | ± 5% rdg |
| Other ranges accuracy | ±10% rdg or 0.5% of scale length |
General
| Power source | R6 (AA) (1.5V) × 8 |
|---|---|
| Dimensions | 200 (L) × 140 (W) × 80 (D) mm |
| Weight | approx. 1kg |
| Included Accessories | 7165A (Line probe) (3m) 7224A (Earth cord) (1.5m) 7225A (Guard code) (1.5m) 8019 (Hook type prod) 9158 (Hard case) R6 (AA) × 8 Instruction manual |
| Optional Accessories | 7168A (Line probe with aligator clip) 8324 (Adaptor for recorder) 7253 (Longer Line probe with alligator clip) (15m) |
