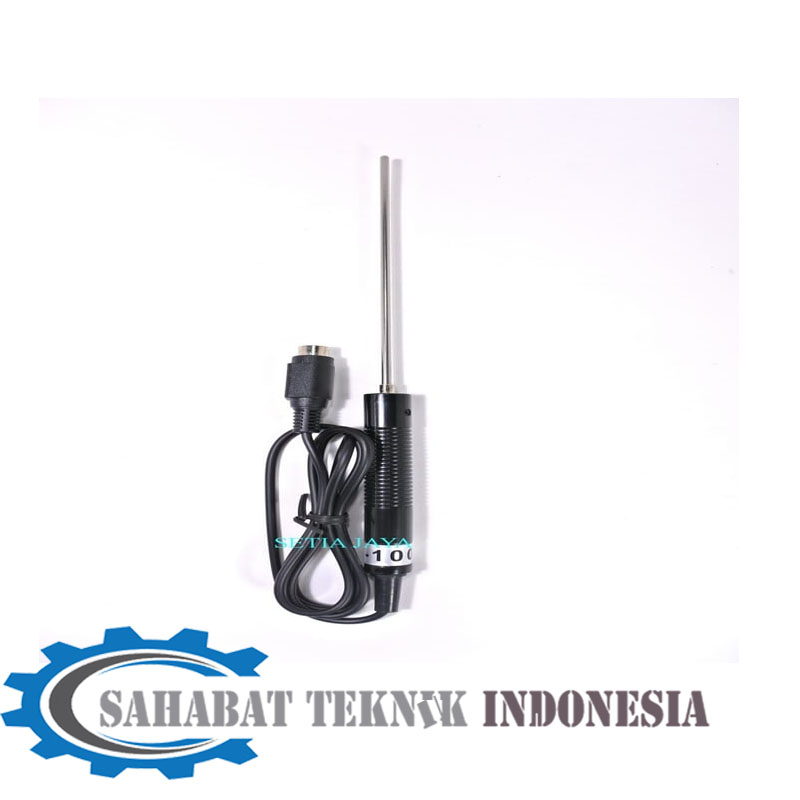

Jual Lutron TP-100 PT100 ohm TEMPERATURE PROBE
Spesifikasi
PT 100 ohm TEMPERATURE PROBE
Model : TP-100
* The exclusive Pt 100 ohm precision Temp. probe for TM-907A, TM-917,
TM-917HA, TM-2000, TM-936.
* Sensor type : Pt 100 ohm.
* Range : -50 to 400 oC.
Deskripsi
Jual Lutron TP-100 PT100 ohm TEMPERATURE PROBE
Deskripsi Lutron TP-100 PT100
Features Cooperate with an 0.00385 alpha
coefficient, meet DIN IEC 751.
0 resistance 100 ohm.
Measuring -50 to 400 .
Range -58 to 752 .
Plug DIN plug, 4 pins/4 wires.
Class Class A.
Accuracy (0.15 + (0.002 x T)).
T : measuring temperature.
For example :
Accuracy is 0.15 for 0 reading.
Accuracy is 0.35 for 100 reading.
Accuracy is 0.95 for 400 reading.
Dimension Sensing head 152 mm tube,
3.2 mm Dia.
Probe handle length 130 mm.
Cable length 1000 mm.
TP-100 Temperature probe adalah optional probe untuk produk LUTRON sebagai berikut :
TM-907A,
TM-917,
TM-917HA,
TM-2000,
TM-936,
TM-9017SD
Spesifikasi
PT 100 ohm TEMPERATURE PROBE
Model : TP-100
* The exclusive Pt 100 ohm precision Temp. probe for TM-907A, TM-917,
TM-917HA, TM-2000, TM-936.
* Sensor type : Pt 100 ohm.
* Range : -50 to 400 oC.
