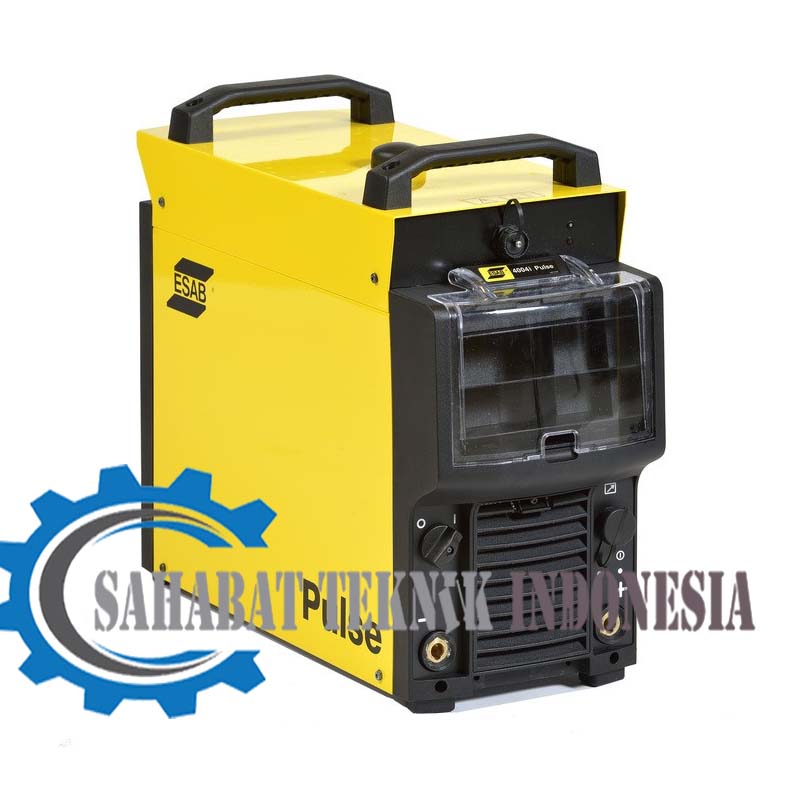

Jual Mesin Las ESAB ARISTO MIG 4004I PULSE

Spesifikasi:

Dimensions

Height 17.5 in. (445 mm)
Length 24 in. (610 mm)
Width 9.8 in. (250 mm)

Fuse Specifications

Fuse Slow – Amps 20 A

Input Voltage

Frequency 50/60 Hz
Phase 3
Voltage 380-460 V

Power Specifications

Efficiency at Maximum Current 89.5 %
Energy Save Mode 40 W
Open Circuit Voltage 55 (VRD <35) V
Power Factor at Maximum Current 0.95
Protection Class IP23

MIG / MMA

Current Range(A) 16-400 A

TIG

Current Range(A) 4-400 A

Software System

Compatible Software WeldCloud
Integration Type Retrofit top box on machine (needs U82)
Software Inclusion WeldCloud Data & WeldCloud Apps included.

Specifications

Application Classification S
MCableX AWG10, (4x 4,0 mm2)
Operating Temp -10 – +40 °C
Standards CE

Weight

without COOL 1

Weight 44.5 kg (98 lb)

With COOL 1

Weight 128 lb (58 kg)

Welding Output

Duty Cycle 60 %
Output Current 400 A
Output Voltage 34 V
Duty Cycle 100 %
Output Current 300 A
Output Voltage 29 V

Deskripsi

Jual Mesin Las ESAB ARISTO MIG 4004I PULSE

Deskripsi:

Sumber daya Aristo® 4004i Pulse memberikan kinerja pengelasan busur yang jauh lebih baik. Paket pengelasan multi-proses ini dilengkapi teknologi inverter terbaru untuk mengelas baja ringan, baja tahan karat, dan aluminium secara efisien menggunakan kabel padat atau beralur fluks. Ini juga menawarkan faktor daya yang cukup ditingkatkan, lebih baik dari 0,95 dan efisiensi 89,5%. Ini memberi Anda konsumsi energi yang diminimalkan dan menawarkan pengurangan yang signifikan dalam biaya energi Anda dalam kondisi pengelasan yang serupa.

Features

  • Pulse functionality reduces heat input and minimizes spatter
  • Up to 250 pre-programmed synergic lines
  • QSet™ intelligent welding system
  • Crater filling and adjustable burn back time
  • Pre and post gas flows
  • ESAB LogicPump prevents overheating of the torch
  • TrueArcVoltageTM system measures the correct arc voltage at the contact tip (together with ESAB torches)


Industries

  • Industrial and General Fabrication
  • Power Generation
  • Railcars
  • Ship and Offshore Yards
  • Transportation
  • Heavy Equipment
  • Mining
  • Windtower
  • Steel Erectors
  • Energy
