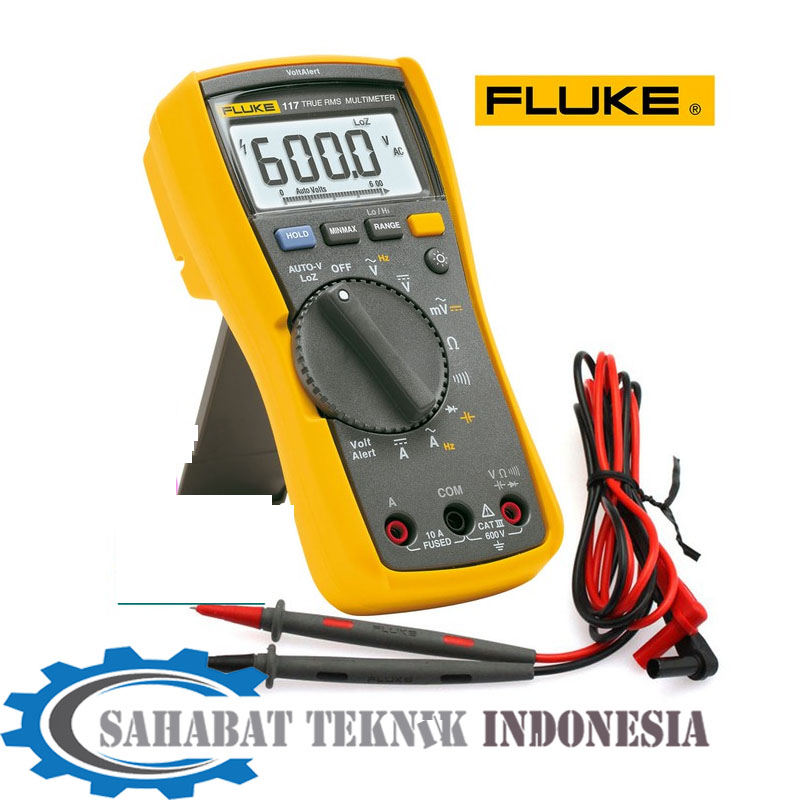

Specifications: Fluke 117 Electrician’s Multimeter with Non-Contact Voltage

Specifications
Maximum voltage between any terminal and earth ground 600 V
Safety IEC 61010-1: Pollution Degree 2
IEC 61010-2-033: CAT III 600V
Fuse for A input 11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display Digital: 6,000 counts, updates 4 per second
Bar graph 33 segments, updates 32 per second
Operating temperature -10°C to +50°C
Storage temperature -40°C to +60°C
Battery type 9 volt Alkaline, IEC 6LR61
Battery life 400 hours typical, without backlight
Accuracy Specifications
DC millivolts Range/resolution 600.0 mV / 0.1 mV
Accuracy ±([% of reading] + [counts]): 0.5% + 2
DC volts Range/resolution 6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 V
Accuracy ±([% of reading] + [counts]): 0.5% + 2
Auto volts Range/resolution 600.0 V / 0.1 V
Accuracy 2.0% + 3 (DC, 45 Hz to 500 Hz)
4.0% + 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMS Range/resolution 600.0 mV / 0.1 mV
Accuracy 1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMS Range/resolution 6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
Accuracy 1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
Continuity Range/resolution 600 Ω / 1 Ω
Accuracy Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of
500 μs or longer.
Ohms Range/resolution 600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ
Accuracy 0.9% + 1
Range/resolution 40.00 MΩ / 0.01 MΩ
Accuracy 5% + 2
Diode test Range/resolution 2.00 V / 0.001 V
Accuracy 0.9% + 2
Capacitance Range/resolution 1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
100 μF to 1000 μF
Accuracy 1.9% + 2
Range/resolution > 1000 μF
Accuracy 5% + 20%
Lo-Z capacitance Range 1 nF to 500 μF
Accuracy 10% + 2 typical
AC amps True RMS (45 Hz to 500 Hz) Range/resolution 6.000 A / 0.001 A
10.00 A / 0.01 A
Accuracy 1.5% + 3
20 A continuous overload for 30 seconds max
DC amps Range/resolution 6.000 A / 0.001 A 10.00 A / 0.01 A
Accuracy 1.0% + 3
20 A continuous overload for 30 seconds max
Hz (V or A input)² Range/resolution 99.99 Hz / 0.01 Hz
999.9 Hz / 0.1 Hz
9.999 kHz / 0.001 Hz
50.00 kHz / 0.01 Hz
Accuracy 0.1% + 2
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.
2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.
2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical and General Specifications
Size 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight 550 g
Warranty 3 years
Kategori: , Tag:

Deskripsi

Jual Multimeter Fluke 117

Deskripsi Fluke 117 Multimeter

Fluke 117: Multimeter digital ringkas yang dirancang untuk listrik

Multimeter digital true-rms ringkas untuk teknisi listrik
Termasuk multimeter, ujung uji silikon 4mm, holster, dan manual
Deteksi tegangan non-kontak terintegrasi membuat Anda tetap aman
Cegah pembacaan salah dari voltase hantu dengan mode impedansi rendah yang dapat dipilih

Multimeter Fluke 117 Electrician dengan Tegangan Non-Kontak
Fluke 117: Multimeter digital ringkas yang dirancang untuk listrik

Fluke 117 Electricians Multimeter adalah meter True-rms CAT III 600 V yang ringkas, yang mencakup antarmuka yang mudah digunakan dengan cahaya latar yang terang untuk tempat kerja yang lebih gelap. Ini menghemat waktu Anda dan memungkinkan Anda berpindah dari satu pekerjaan ke pekerjaan lebih cepat. Dengan putaran cepat dial Anda bisa mendapatkan pengukuran untuk:

Perlawanan
Kontinuitas
Frekuensi
Kapasitansi
Min / Maks / Rata-Rata
Untuk sehari-hari

Multimeter digital yang dirancang untuk dibawa ke mana-mana bersama Anda, bagian dari alat sehari-hari Anda. 117 dibangun untuk aplikasi yang menuntut seperti:

Bangunan komersial
Rumah sakit
Sekolah
Deteksi tegangan non-kontak

Jadikan diri Anda lebih aman dengan teknologi terintegrasi VoltAlert ™. Deteksi tegangan non-kontak cepat, pergi / tidak pergi yang terpasang di multimeter Anda menghemat Anda dari keharusan membawa atau menemukan alat tambahan untuk memulai pekerjaan.

Pilihan AC / DC otomatis

Atur pemutar dan dapatkan pengukuran Anda dengan cepat dengan AutoVolt. Pemilih tegangan AC / DC otomatis ini memudahkan Anda untuk mendapatkan pengukuran yang Anda butuhkan dan bergerak lebih cepat.
