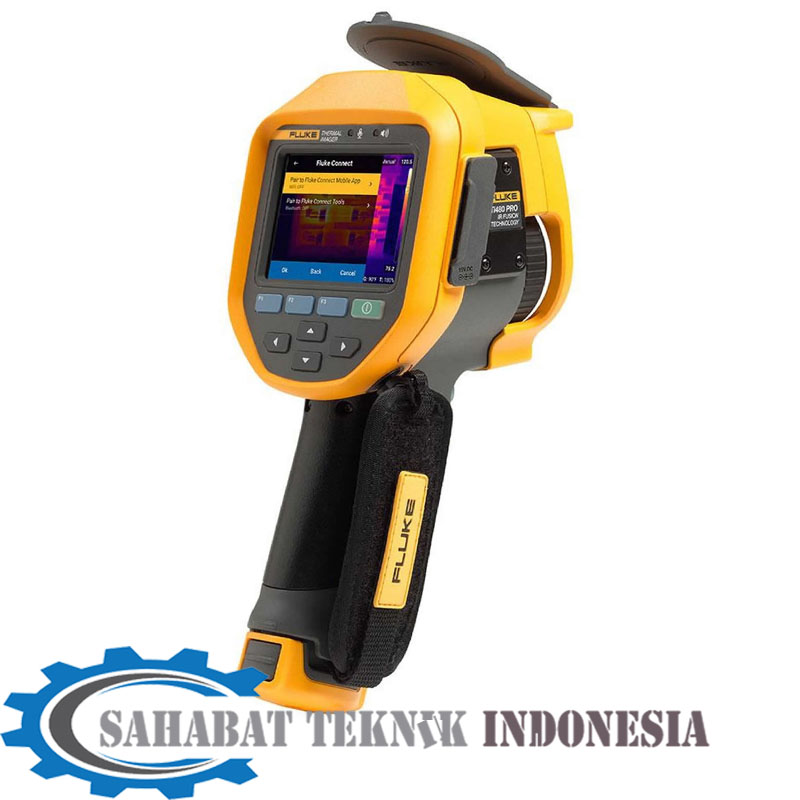

Jual PRO Infrared Camera Fluke Ti480
Specifications: Fluke Ti480 PRO Infrared Camera
| Key features | |
| IFOV with standard lens (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Detector resolution | 640 x 480 |
| SuperResolution | Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image |
| Infrared Resolution | 307,200 pixels |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Ruggedized touchscreen display | 3.5 inch (landscape) 640 x 480 LCD |
| Rugged, ergonomic design for one-handed use | Yes |
| Digital zoom | 2x and 4x |
| Temperature measurement | |
| Temperature measurement range (not calibrated below -10 °C) | ≤-20 °C to 1000 °C (-4 °F to 1832 °F) |
| Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
| Thermal sensitivity (NETD)* | ≤0.05 °C at 30 °C target temp (50 mK) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| *Best possible | |
| Wireless connectivity | |
| To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) | |
| Fluke Connect® app compatible | Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect® Assets optional software | Yes*, assign images to assets and create work orders. Easily compare measurement types in one location |
| Fluke Connect® Instant Upload | Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
| Fluke Connect® tool compatible | Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen |
| IR-Fusion® technology | |
| Adds the context of the visible details to your infrared image | |
| AutoBlend™ mode | Min, Mid, Max IR plus full visible on camera; continously variable in software |
| Picture-In-Picture (PIP) | Yes |
| Built-in digital camera (visible light) | 5 MP |
| Lenses | ||
| Standard lens | IFOV (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Field of view | 34 °H x 24 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Picture-In-Picture and full screen | |
| Optional 2x telephoto smart lens | IFOV (spatial resolution) | 0.46 mRad, D:S 1529:1 |
| Field of view | 17 °H x 12 °V | |
| Minimum focus distance | 45 cm (approx. 18 in) | |
| IR-Fusion® technology | Picture-In-Picture and full screen | |
| Optional 4x telephoto smart lens | IFOV (spatial resolution) | 0.23 mRad, D:S 2941:1 |
| Field of view | 6 °H x 4.5 °V | |
| Minimum focus distance | 1.5 cm (approx. 60 in) | |
| IR-Fusion® technology | N/A | |
| Optional wide-angle smart lens | IFOV | 1.85 mRad, D:S 377:1 |
| Field of view | 48 °H x 34 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Full screen | |
| Level and span | Smooth auto and manual scaling |
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
| Data storage and image capture | |
| Extensive memory options | Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud™ for permanent storage |
| Image capture, review, save mechanism | One-handed image capture,review, and save capability |
| Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
| Memory review | Thumbnail and fullscreen review |
| Software | SmartView® software – full analysis and reporting software and Fluke Connect® system |
| Export file formats with SmartView® software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required |
| IR-PhotoNotes™ | Yes (5 images) |
| Text annotation | Yes |
| Video recording | Standard and radiometric |
| File formats video | Non-radiometric (MPEG – encoded .AVI) and fully-radiometric (.IS3) |
| Streaming video (remote display) | Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® software on a PC; via WiFi hotspot to the Fluke Connect® app on a smartphone; or via HDMI to a TV monitor |
| Remote control operation | Yes, through SmartView® software or Fluke Connect® mobile app |
| Auto capture (temperature and interval) | Yes |
| Battery | |
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life | 2-3 hours per battery (*Actual life varies depending on settings and usage) |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable sleep and power off modes |
| Color palettes | |
| Standard palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| General specifications | |
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | 3 user-definable spot markers |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp display |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10% to 95% non-condensing |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15 Subpart B |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-29 |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
| Size (H x W x L) | 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
| Weight (battery included) | 1.04 kg (2.3 lb) |
| Enclosure rating | IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
Deskripsi
Jual PRO Infrared Camera Fluke Ti480
Deskripsi Fluke Ti480 PRO Infrared Camera
Fluke Ti480 PRO Kamera Inframerah
Peningkatan sensitivitas untuk memvisualisasikan perbedaan suhu
Lebih mudah untuk memvisualisasikan dan mendiagnosis masalah dengan gambar pada layar yang lebih tajam, beberapa penanda persegi panjang dan 9 palet warna
Antarmuka visual yang lebih intuitif, antarmuka layar sentuh yang ditingkatkan, teruji pengguna
Lebih fleksibel untuk memvisualisasikan target, mungil ke besar dengan lensa pintar yang dapat dipertukarkan – tidak perlu kalibrasi, telefoto 2x dan 4x, sudut lebar dan kompatibilitas lensa makro
Abadikan gambar yang jelas dan akurat yang difokuskan di seluruh bidang pandang dengan MultiSharp ™ Focus
Dapatkan gambar instan fokus dari target yang Anda tuju. LaserSharp® Auto Focus menggunakan pengukur jarak laser built-in yang menghitung dan menampilkan jarak dari target yang Anda tuju.
Dapatkan 4x data piksel dengan SuperResolution, yang menangkap beberapa gambar dan menggabungkannya untuk membuat gambar 1280 x 960
Hemat waktu – sinkronkan gambar secara nirkabel langsung dari kamera Anda ke sistem Fluke Connect®, dan lampirkan ke catatan aset atau perintah kerja
Kurangi kebutuhan membuat catatan di lapangan dengan IR-PhotoNotes ™ dan anotasi suara
Tunduk pada Kontrol Ekspor
Fluke Ti480 PRO Kamera Inframerah
Peningkatan sensitivitas untuk memvisualisasikan perbedaan
Tangkap perbedaan suhu yang lebih kecil dengan peningkatan sensitivitas termal
Kejelasan layar lama versus gambar layar yang lebih tajam
Lebih mudah untuk memvisualisasikan dan mendiagnosis masalah
Gambar di layar yang lebih tajam dengan diferensiasi warna visual yang lebih baik
Tampilkan penyimpangan dari suhu standar dan komunikasikan masalah dengan tim Anda menggunakan beberapa penanda Delta-T – pilih satu sebagai titik referensi dan yang lainnya untuk menampilkan nilai sebagai perbedaan
Beberapa penanda persegi panjang di dalam kamera – identifikasi suhu minimum / maksimum untuk area peralatan atau array peralatan
Bedakan perbedaan panas lebih mudah dengan palet baru dan lebih banyak warna kuning dan hijau di layar
Antarmuka visual yang lebih intuitif
Antarmuka layar sentuh yang ditingkatkan, diuji oleh pengguna, memanfaatkan gaya saat ini dan lebih intuitif dari sebelumnya
Lebih banyak fleksibilitas untuk memvisualisasikan target – kecil ke besar
Sekarang kompatibel dengan semua lensa pintar inframerah Fluke
Makro, telefoto dan sudut lebar – dari kecil ke besar, tangkap target Anda
Fluke smart lens dapat dipertukarkan antara kamera yang kompatibel tanpa kalibrasi
Dengan fokus Ti480 PRO MultiSharp ™ menangkap gambar yang difokuskan di seluruh bidang pandang, bahkan jika Anda mulai dari target yang benar-benar buram. Kamera mengambil banyak gambar dan menggabungkannya untuk memberikan fokus yang jelas dan akurat pada target dekat dan jauh. Lihat lebih detail dengan SuperResolution, menawarkan data piksel 4x. Menggunakan perangkat lunak dan SuperResolution Anda dapat melihat gambar dengan resolusi hingga 1280 x 960.
Hemat waktu dengan sistem Fluke Connect®
Anda dapat secara nirkabel menyinkronkan gambar langsung dari kamera Anda ke sistem Fluke Connect®, dan melampirkannya ke catatan aset atau perintah kerja. Memiliki akses ke catatan pemeliharaan secara bersamaan di lokasi inspeksi dan dari kantor atau lokasi di luar lokasi memungkinkan pengambilan keputusan yang lebih cepat dan kolaborasi waktu nyata antara anggota tim. Anda juga dapat melakukan streaming langsung tampilan kamera ke ponsel cerdas atau PC Anda dan mengontrol kamera dari jarak jauh.
