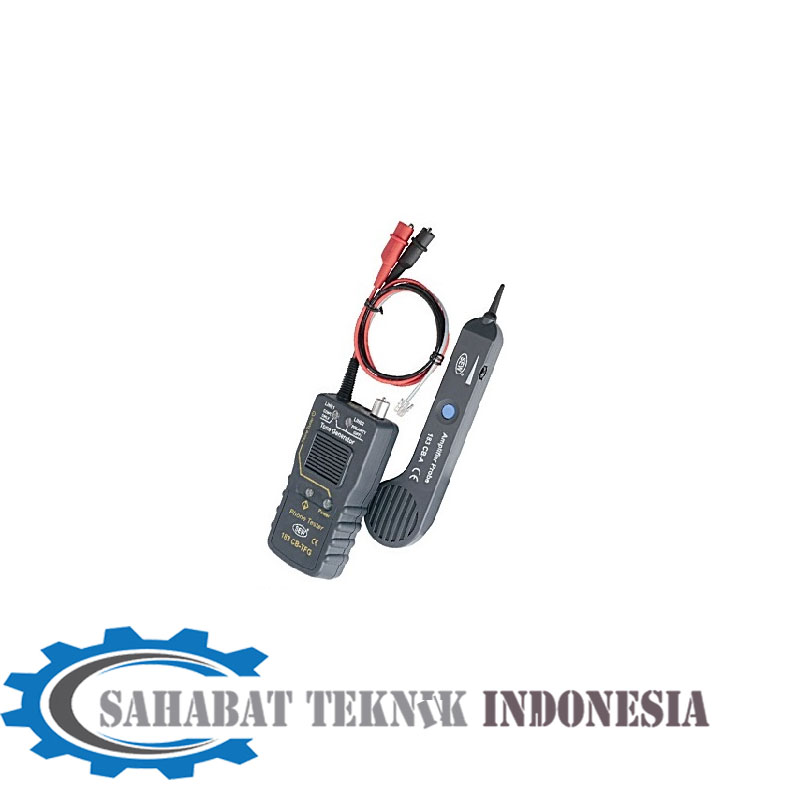

Jual SEW 183 CB Cable Tracer and Phone Tester (2 in 1)

Jual SEW 183 CB Cable Tracer and Phone Tester (2 in 1)

Spesifikasi SEW 183 CB

 Amplifier Probe
  Frequency   1Hz~12kHz
  Receiver  distance   < 50cm
  Sensitivity control  ˇ
  Probe tip   Fixed
  Power source   9V(6F22) × 1
  Dimensions   230(L) × 56(W) × 27(D)mm
  Weight   Approx. 125g (battery included)
 Tone Generator
  Wave form   Square Wave
  Frequency   1kHz±15%
  Over voltage
protection		   80V DC
  Single tone   ─
  Alternating tone   Fast and Slow
  Connection   RJ11 connector, alligator clip x 2,
  Power source   1.5V (AA) × 6
  Dimensions   143(L) × 74.5(W) × 33.6(D)mm
  Weight
(battery included)		   Approx. 318g
 Phone Tester
  Loud speaker  ˇ
  Continuity testing  ˇ
  Checking resistance  ˇ
  ACV/DCV checking  ˇ
  Checking capacitors  ˇ
 Checking diodes  ˇ
 General
 Operating temp &
humidity		  0˚~40˚C, 80% Max.
 Storage temp &
humidity		  -10˚~50˚C, 80% Max.
 Safety standard  EN 61326-1  EN 55011
EN 6100-4-2  EN 6100-4-3
Kategori: , Tag:

Deskripsi

Jual SEW 183 CB Cable Tracer and Phone Tester (2 in 1)

Deskripsi SEW 183 CB

  FEATURES
Cable Tracer

● Trace wires or cables.
● Volume control.
● Tip & Ring identification.
● 2 bi-colored LEDs ( Line 1 & Line 2).
● Tone speed selection : Fast & Slow.
● A phone jack is designed for headset or handset. (Amplifier probe)

Phone Tester

● Continuity and resistance testing for voltage-free objects.
● Check direct and alternating voltages.
● Testing capacitors.
● Testing diodes.
● Power ON/OFF switch.
● The indication of the LED lamp and the sound of the
buzzer can occur at the same time.
● The LED indication for Power ON status.
  SPECIFICATIONS
 Amplifier Probe
  Frequency   1Hz~12kHz
  Receiver  distance   < 50cm
  Sensitivity control  ˇ
  Probe tip   Fixed
  Power source   9V(6F22) × 1
  Dimensions   230(L) × 56(W) × 27(D)mm
  Weight   Approx. 125g (battery included)
 Tone Generator
  Wave form   Square Wave
  Frequency   1kHz±15%
  Over voltage
protection		   80V DC
  Single tone   ─
  Alternating tone   Fast and Slow
  Connection   RJ11 connector, alligator clip x 2,
  Power source   1.5V (AA) × 6
  Dimensions   143(L) × 74.5(W) × 33.6(D)mm
  Weight
(battery included)		   Approx. 318g
 Phone Tester
  Loud speaker  ˇ
  Continuity testing  ˇ
  Checking resistance  ˇ
  ACV/DCV checking  ˇ
  Checking capacitors  ˇ
 Checking diodes  ˇ
 General
 Operating temp &
humidity		  0˚~40˚C, 80% Max.
 Storage temp &
humidity		  -10˚~50˚C, 80% Max.
 Safety standard  EN 61326-1  EN 55011
EN 6100-4-2  EN 6100-4-3
