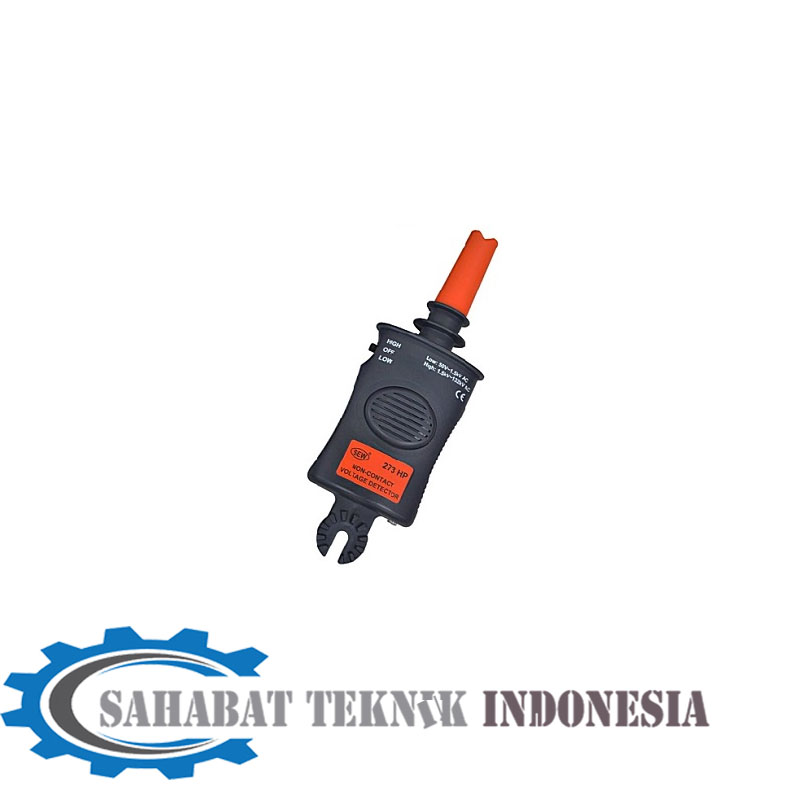

Jual SEW 273 HP Non-Contact Voltage Detector FEATURES
Deskripsi SEW 273 HP
| FEATURES |
● 2 ranges for selection : LOW 50V~1.5kV
HIGH 1.5kV~132kV
● There is no power consumption in off mode : 0uA
● Nice mechanical slide switch for function selection : HIGH / OFF / LOW
● The power consumption in low voltage detection mode : Less than 20mA
● The power consumption in high voltage detection mode : Less than 20mA
● Bright LED and audible alarm sound when voltage is present.
● Lightweight, robust and compact.
● Efficient and easy to use
● Users have to use the Hot Stick when test high voltages between 1.5kV~132kV.
● SEW provides nice optional accessories of Hot Sticks HS-175 and HS-120 for high voltage detection.
● Optional accessories :
HS-175 Telescopic hot stick (triangle-type)
HS-120 Hot stick |
|
| SPECIFICATIONS |
|
|
|
|
|
|
Operating
temperature |
0°C~50°C |
| Dimensions |
245(L) x 80(W) x 37(D)mm |
Weight
(battery included) |
Approx. 175g |
| Power source |
9V(6LF22) x 1 Alkaline battery |
| Safety standards |
EN 61326-1
EN 61000-4-2 EN 61000-4-3 |
|
|
|
|
|
|
