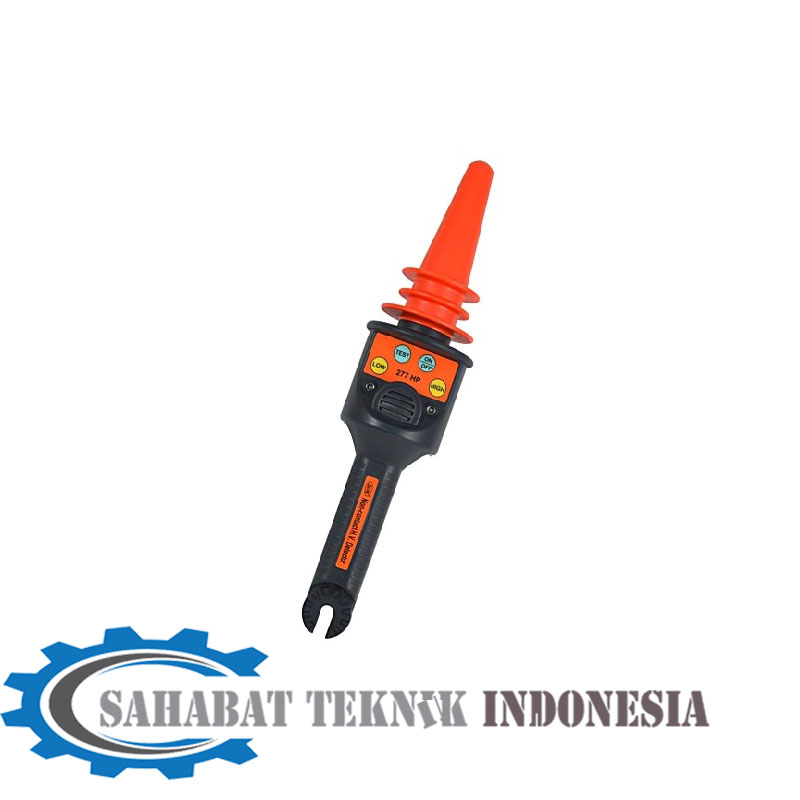

Jual SEW 277 HP Non-Contact H.V. Detector

Jual SEW 277 HP Non-Contact H.V. Detector

Spesifikasi SEW 277 HP

SPECIFICATIONS





 Operating
temperature		  0°C~50°C
 Dimensions  318(L) x 75(W) x 71(D)mm
 Weight
(battery included)		  Approx. 227g
 Power source  9V(6LF22) x 1 Alkaline battery
 Safety standards  EN 61326-1
EN 61000-4-2  EN 61000-4-3
Kategori: , Tag:

Deskripsi

Jual SEW 277 HP Non-Contact H.V. Detector

Deskripsi SEW 277 HP

 FEATURES
● 2 ranges for selection ( 2 function buttons )
LOW : 50V~1.5kV
Press the LOW button, 277 HP is ready for low voltage detection.
HIGH : 1.5kV~132kV
Press the HIGH button, 277 HP is ready for high voltage detection.
● Power consumption:
Off : Less than 5uA
Low voltage detection mode: Less than 40mA
High voltage detection mode: Less than 40mA
●  Circuit test function
Press the Test button to make sure the whole circuit is working well
before testing actual high voltage circuits.
●  Optional accessory:
HS-175 Telescopic hot stick (triangle-type)
HS-120 Hot stick
 SPECIFICATIONS




 Operating
temperature		  0°C~50°C
 Dimensions  318(L) x 75(W) x 71(D)mm
 Weight
(battery included)		  Approx. 227g
 Power source  9V(6LF22) x 1 Alkaline battery
 Safety standards  EN 61326-1
EN 61000-4-2  EN 61000-4-3
