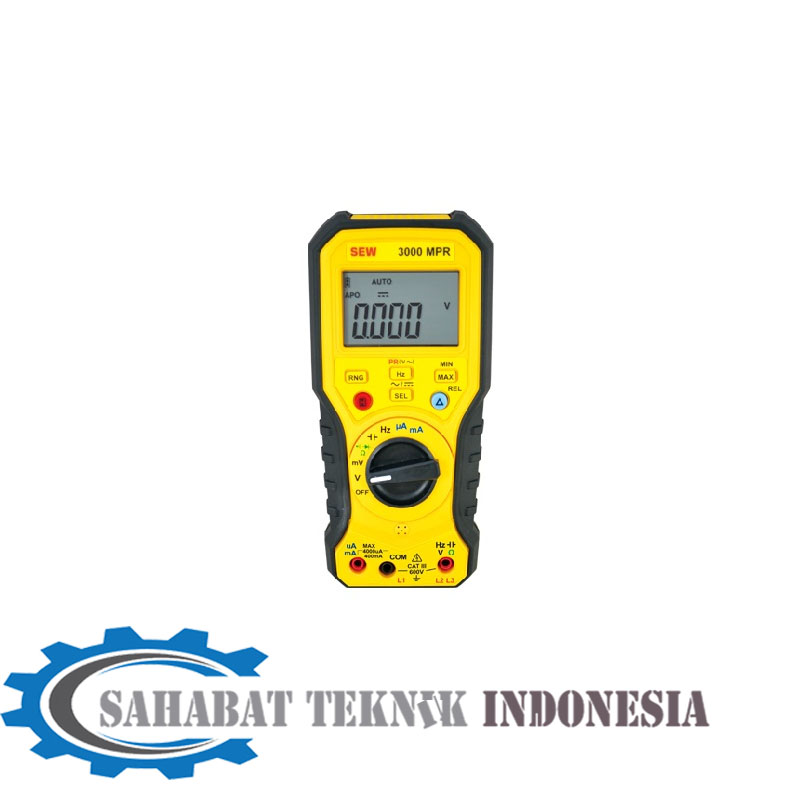

Jual SEW 3000 MPR Digital Multimeter and Phase Rotation Tester
Deskripsi SEW 3000 MPR
| FEATURES |
|
● 4000-count LCD
● Auto ranging
● Voltage, Resistance, Current, Continuity, Diode measurement
● Can measure Resistance / Insulation up to 200.0 Mohm
● Checks a wide range of 3-phase power sources (80~750VAC)
● Phase Rotation indication : clockwise and counter-clockwise on LCD
● The LCD will show AC voltage between phases and Phase Rotation
● Wide range for capacitance test: 0~40000μF(40.00mF)
● REL / Auto-Zero function
● MAX /MIN function
● VAHz function
● Frequency : 40.00 MHz
● Data hold function
● Over range indication
● Low battery detection
● Auto power off in 15 minutes
● Convenient stand for viewing
● Comply with EN 61010-1, CAT III 600V for the
range of 600V AC/DC
|
|
| SPECIFICATIONS |
|
|
|
| DC Voltage |
|
|
|
|
Ranges
|
Resolution
|
Accuracy
|
|
400mV
|
0.1mV
|
±(0.5%rdg+3dgt)
|
|
4V
|
1mV
|
|
40V
|
10mV
|
|
400V
|
100mV
|
|
1000V
|
1V
|
| ․Input impedance : 10MΩ |
| AC Voltage |
|
|
|
|
Ranges
|
Resolution
|
Accuracy
|
|
400mV
|
0.1mV
|
±(1.0%rdg+5dgt)
|
|
4V
|
1mV
|
|
40V
|
10mV
|
|
400V
|
100mV
|
|
750V
|
1V
|
| ․Input impedance : 10MΩ |
| DC mA / µA |
|
|
|
|
Ranges
|
Resolution
|
Accuracy
|
|
400µA
|
0.1μA
|
±(1.0%rdg+5dgt)
|
|
4000µA
|
1μA
|
|
40mA
|
0.01mA
|
|
400mA
|
0.1mA
|
| ․Overload Protection 0.5A/600V fast blow fuse for 400mA |
| AC mA / µA |
|
|
|
|
Ranges
|
Resolution
|
Accuracy
|
|
400µA
|
0.1μA
|
±(1.2%rdg+5dgt)
|
|
4000µA
|
1μA
|
|
40mA
|
0.01mA
|
|
400mA
|
0.1mA
|
| ․Overload Protection 0.5A/600V fast blow fuse for 400mA |
| Resistance |
|
|
|
|
Ranges
|
Resolution
|
Accuracy
|
|
40Ω
|
0.01 Ω
|
±(1.2%rdg+3dgt)
|
|
400Ω
|
0.1 Ω
|
|
4kΩ
|
1Ω
|
|
40kΩ
|
10Ω
|
|
400kΩ
|
100Ω
|
|
4MΩ
|
1kΩ
|
|
40MΩ
|
10kΩ
|
±(2.0%rdg+4dgt)
|
|
200MΩ
|
100kΩ
|
±(2.3%rdg+4dgt)
|
| Capacitance |
|
|
|
|
Ranges
|
Resolution
|
Accuracy
|
|
4 nF
|
1 pF
|
±(3.0%rdg+10dgt)
|
|
40 nF
|
10 pF
|
|
400 nF
|
100 pF
|
|
4 µF
|
1 nF
|
|
40 µF
|
10 nF
|
|
400 µF
|
100 nF
|
|
4 mF
|
1 µF
|
|
40 mF
|
10 µF
|
| Continuity |
|
|
|
|
Ranges
|
Audible threshold
|
|
400Ω
|
Less than 30Ω
|
| Diode |
|
|
|
|
Ranges
|
Accuracy
|
|
2V
|
±(1.5%rdg+3dgt)
|
| Frequency |
|
|
|
|
Ranges
|
Resolution
|
Accuracy
|
|
400Hz
|
0.1Hz
|
±(0.5%rdg+2dgt)
|
|
4kHz
|
1Hz
|
|
40kHz
|
10Hz
|
|
400kHz
|
100Hz
|
|
4MHz
|
1kHz
|
|
40MHz
|
10kHz
|
| Phase Rotation |
|
|
|
| Input Voltage |
80~750VAC |
| Frequency range |
40~80Hz |
| Circuit structure |
All electronic (not mechanical) |
| GENERAL |
|
|
|
| Dimensions |
188mm(L) x 90mm(W) x 54mm(D) |
Weight
(battery included) |
Approx. 346g |
| Power source |
1.5V (AAA) battery x 2 |
| Safety standard |
EN 61010-1 CAT III 600V
EN 61326-1 |
|
|
|
|
