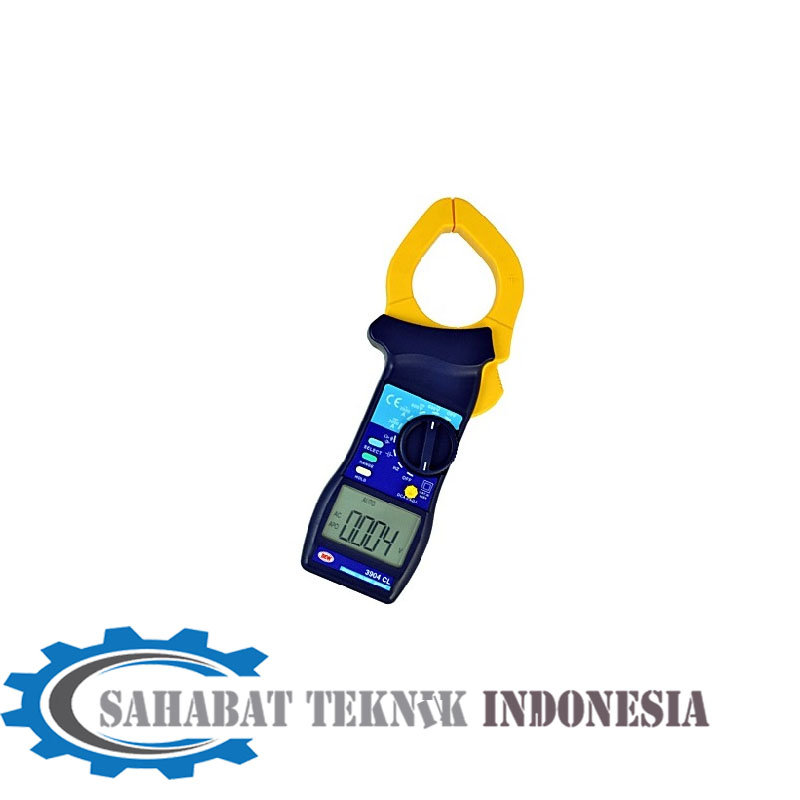

Jual SEW 3904 CL AC/DC Clamp Meters
Deskripsi SEW 3904 CL AC/DC
| FEATURES |
● 4000 – count LCD.
● Full automatic measurement.
◎ Voltage measurement.
◎ Current measurement.
◎ Resistor measurement.
◎ Capacitor measurement
◎ Frequency counter.
● Range change function.
● Data Hold function freezes the reading.
● Continuity check.
● Diode measurement.
● Low battery indication.
● Auto Power Off (APO) function.
● Safety design throughout with no exposed metal parts, shielded
banana plugs and recessed input terminals. |
|
| SPECIFICATIONS |
|
|
|
| AC A |
400.0/2000A (40~500Hz)
0~1500A ±(1.5%rdg+4dgt)
1500A~2000A ±(2.5%rdg+4dgt) |
| AC V |
400.0mV ±(2.0%rdg+3dgt)
4.000/40.00/400.0/750V
±(1.5%rdg+3dgt) 40~500Hz |
| DC A |
400.0/2000A
0~1500A ±(1.5%rdg+4dgt)
1500A~2000A ±(2.5%rdg+4dgt) |
| DC V |
400.0mV/4.000/40.00/400.0/1000V
±(1.0%rdg+3dgt) |
| Ω + Continuity |
400.0Ω/4.000/40.00/400.0kΩ/4.000MΩ
±(1.5%rdg+3dgt)
40.00MΩ ±(2.0%rdg+4dgt) |
| Hz |
4.000/20.00kHz
±(0.5%rdg+2dgt) |
| Capacitor |
4.000/40.00/400.0nF/4.000/40.00/400.0uF/
4.000mF ±(3.0%rdg+5dgt) |
| Bargraph |
── |
| Display |
3¾ (4000 counts) |
| Auto-ranges |
ˇ |
| Data hold |
ˇ |
Low battery
indication |
ˇ |
| Auto power-off |
ˇ |
| Max/Min. Mode |
── |
| Relative mode |
── |
| Conductor size |
55mm Max. |
Operating
temperature &
humidity |
0ºC ~ 40ºC at < 80% RH |
| Dimensions |
265(L) × 100(W) × 42(D)mm |
Weight
(battery included) |
Approx. 510g |
| Power source |
9V(6F22) × 1 |
| Safety standard |
EN 61010-1 CAT III 600V
EN 61010-2-32
EN 61326-1 |
|
|
|
|
