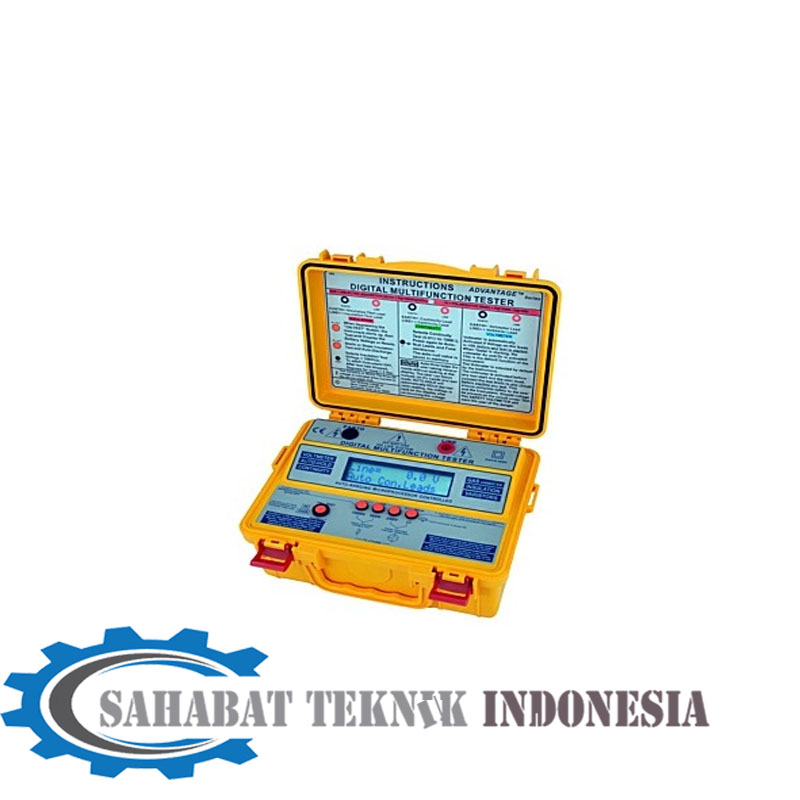

Jual SEW 4102 MF Insulation & Multifunction Testers (LCD Display)
Spesifikasi SEW 4102 MF
| Insulation Test | ||
| Test voltage (DC V) | 250V / 500V / 1000V | |
| Output voltage @ 1mA | Rated test Voltage +10% Max | |
| Measuring ranges | 0.2M~2G / 0.2M-4G / 0.2M-8GΩ | |
| Accuracy | 0.2M~4GΩ : ±3%rdg 4GΩ~8GΩ : ±5%rdg |
|
| When voltage is constant, Current is limited at |
1.2mA | |
| Short circuit current | 4mA Max. | |
| Continuity Test | ||
| Measuring ranges | 0.01-1999Ω | |
| Accuracy | 0.01-100Ω : ±1.0%rdg 100-300Ω : ±1.5%rdg 300-1999Ω : ±2.0%rdg |
|
| Short circuit current | >220mA | |
| Open circuit voltage | 5V dc | |
| Resolution | ±2 counts | |
| Voltmeter | ||
| AC voltage (Auto) | 0-700V | |
| DC voltage (Auto) | 0-950V | |
| Accuracy | ±1.5% rdg | |
| Resolution | ±1V | |
| MOV Test & GAS Arrester Test | ||
| Test voltage | 5-1020Vdc | |
| Voltage result accuracy | ±3% rdg | |
| Voltage result resolution | ±2 counts | |
| Protections | ||
| Over load | 700V (between all terminals) | |
| Over voltage | Class III-700V towards ground | |
| Fuse | 500mA 250V, (5 × 20mm), HBC, Fast Blow | |
| General | ||
| Display | 2 lines × 16 characters LCD | |
| Auto-null threshold | 5Ω | |
| Buzzer threshold | 3Ω | |
| Fast test | 10Sec | |
| Long test | 60Sec | |
| With PI and DAR test function |
10Min | |
| Load battery test current | About 300mA | |
| Operating temperature | 0°C to 40°C not in full sun | |
| Storage temperature | -10°C to 50°C | |
| Dimensions | 250(L) × 190(W) × 110(D)mm | |
| Weight (battery included) | Approx 1460g. | |
| Power source | 1.5V(AA) × 8 | |
Deskripsi
Jual SEW 4102 MF Insulation & Multifunction Testers (LCD Display)
Deskripsi SEW 4102 MF
| FEATURES | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ● Measures Insulation Resistance, voltage (AC-DC) measurements ● Automatic hold facility. ● Continuity test with a short circuit current of minimum 200mA. ● MOV and Gas Arrester Testing. ● Energy conservation is feature. ● EnerSave™ limits the test duration to about 10 Seconds to save energy. ● No moving parts. All calibration are saved internally in a non volatile memory. ● Easy calibration at any facility around the world. ● Low cost maintenance, calibration, and ownership. ● Complies to all the latest regulations, including UK. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
