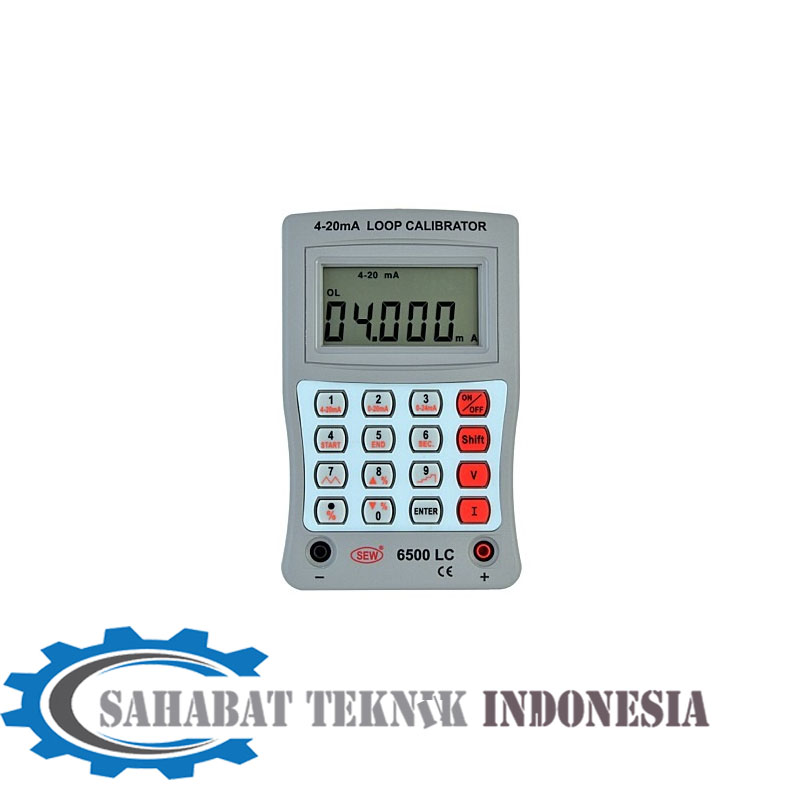

Jual SEW 6500 LC Loop Calibrator

Deskripsi

Jual SEW 6500 LC Loop Calibrator

Deskripsi SEW 6500 LC

FEATURES

● 4-20mA (1kΩ load, 24V Loop Supply).
● 0.025% Basic Accuracy.
● Simple Operation Interface.
● Auto Ramp and Step Functions.
● 0-20mA, 0-24mA selectable.
● Incremental percentage setting : 0-100%.
● Warning beeper when output is open.
● 0-24V output.
● The minimum load of 20kΩ on voltage mode.

Specifications
DC Current (1k Max Load, 24v Loop Supply)
Range : 0-4mA / 4-20mA / 20-24mA
Resolution : 1uA
Accuracy : 0.025%10uA / 0.025%5uA / 0.025%5uA
* Beeper warning when output circuit is open and specified output voltage > 24V.
DC Voltage (Approx. 10M load)
Range : 0-4V / 4-20V / 20-24V
Resolution : 1mV
Accuracy : 0.05%10mV / 0.05%5mV / 0.05%5mV
* Beeper warning when voltage is short and specified output current is > 24mA.
General
Power consumption : 150mA at 24V 1k load
Operating temperature : 0 C – 40 C
Operating humidity : 80% R.H.
Storage temperature : -10 C – 50 C
Storage humidity : 85% R.H.
Dimensions : 160(L) 100(W) 38(D)mm
Weight (battery included) : Approx. 350g
Power source : 9V(6LF22) 1 Alkaline battery
Safety standard : EN 61326-1
Accessories : Instruction manual, Adapter, Soft pouch, Batteries
