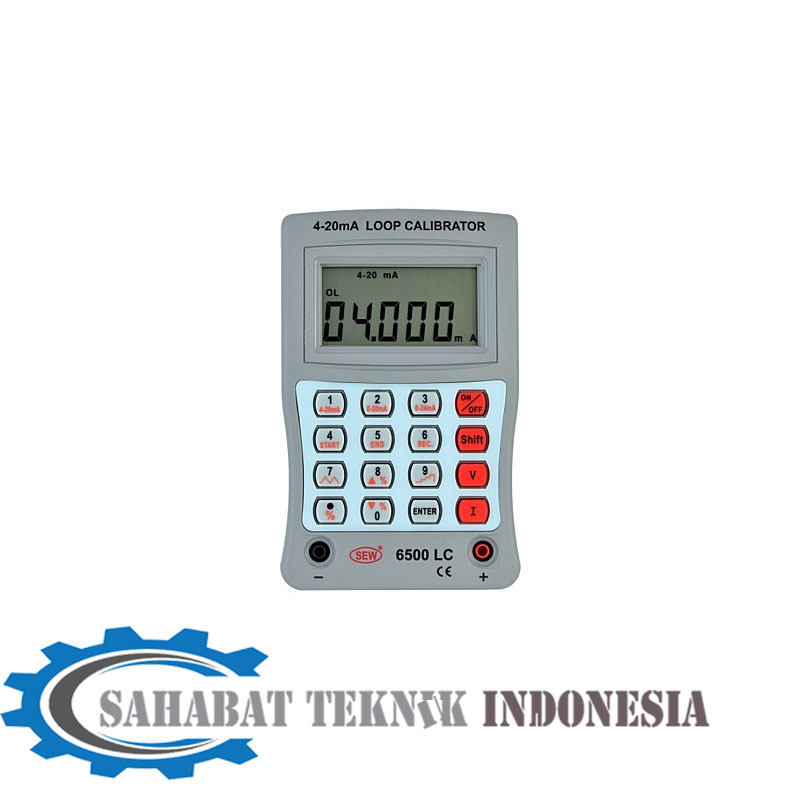

Jual SEW 6500 LC Loop Calibrator
Spesifikasi SEW 6500 LC
| DC Current (1kΩ Max Load, 24v Loop Supply) | ||
| Range | 0-4mA / 4-20mA / 20-24mA | |
| Resolution | 1uA | |
| Accuracy | ±0.025%±10uA / ±0.025%±5uA / ±0.025%±5uA | |
| Beeper warning when output circuit is open and specified output voltage > 24V. | ||
| DC Voltage (Approx. 10MΩ load) | ||
| Range | 0-4V / 4-20V / 20-24V | |
| Resolution | 1mV | |
| Accuracy | ±0.05%±10mV / ±0.05%±5mV / ±0.05%±5mV | |
| Beeper warning when voltage is short and specified output current is > 24mA. | ||
| General | ||
| Power consumption |
150mA at 24V 1kΩ load | |
| Operating temperature |
0º C – 40º C | |
| Operating humidity |
≤ 80% R.H. | |
| Storage temperature |
-10º C – 50º C | |
| Storage humidity | ≤ 85% R.H. | |
| Dimensions | 160(L) × 100(W) × 38(D)mm | |
| Weight (battery included) |
Approx. 350g | |
| Power source | 9V(6LF22) × 1 Alkaline battery | |
| Safety standard | EN 61326-1 | |
Deskripsi
Jual SEW 6500 LC Loop Calibrator
Deskripsi SEW 6500 LC
| FEATURES | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ● 4-20mA (1kΩ load, 24V Loop Supply). ● 0.025% Basic Accuracy. ● Simple Operation Interface. ● Auto Ramp and Step Functions. ● 0-20mA, 0-24mA selectable. ● Incremental percentage setting : 0-100%. ● Warning beeper when output is open. ● 0-24V output. ● The minimum load of 20kΩ on voltage mode. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SPECIFICATIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
