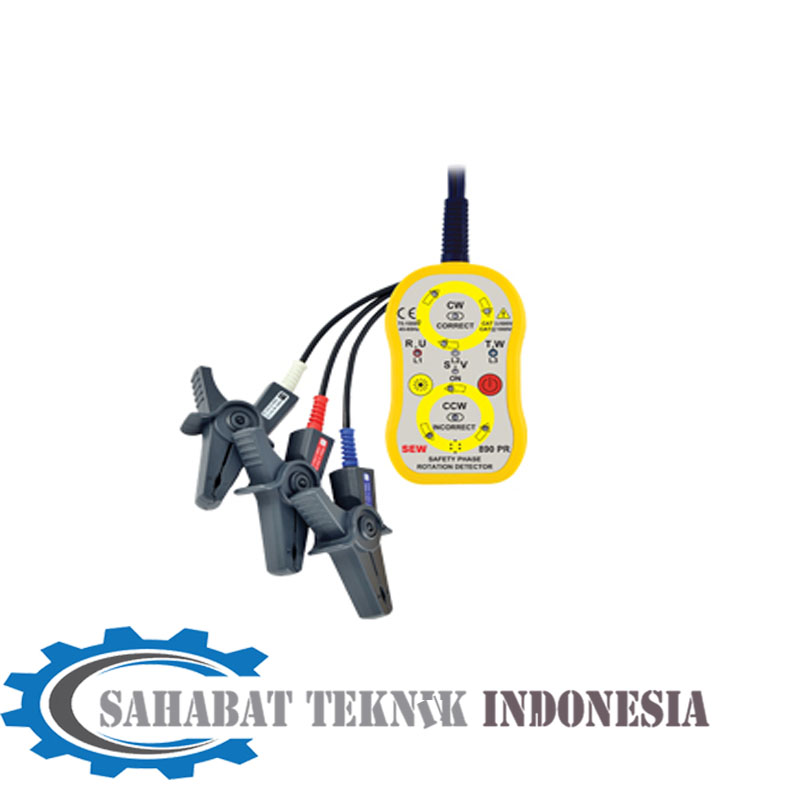

Jual SEW 890 PR Non-Contact Type Phase Sequence Indicators

Jual SEW 890 PR Non-Contact Type Phase Sequence Indicators

Spesifikasi SEW 890 PR

SPECIFICATIONS
  Measurement principle   Static induction
  Input voltage   70~1000Vac
  Frequency range   45-65Hz
  Auto-off   5 min. after power on
without detection
  Low battery warning   Power LED flashes at
4.6±0.1V or less
  Operating temperature
& humidity		  0°C ~ 40°C Max. 80% R.H.
  Storage temperature
& humidity		   -10°C ~ 50°C Max. 80% R.H.
  Cable length   Approx. 800mm
  Dimensions   115(L) × 65(W) × 40(D)mm
  Weight
(battery included)		   Approx. 370g
  Power source   1.5V (AA) × 4 Alkaline batteries
  Safety standard   EN 61010-1 CAT III  1000V /  CAT IV  600V
EN 61326-1
EN 61557-1  EN 61557-7
Kategori: , Tag:

Deskripsi

Jual SEW 890 PR Non-Contact Type Phase Sequence Indicators

Deskripsi SEW 890 PR

 FEATURES
● The 890 PR is a Non-Contact phase detector
with flashing LEDs and a beeping buzzer to
show the detection of AC 3-phase sequence.
● Two functions in one unit : open phase and
phase sequence detection.
● Convenient brightness switch to make the
indication visible in dim areas or sunlight.
● Back cover magnets which attach the instrument
to the AC distribution panel offer easy
measurement.
● 3-Phase AC 70 to 1000V is fitted for detection.
● Conductor size: 1~35mm
● Detect frequency range is from 45 to 65Hz.
SPECIFICATIONS
  Measurement principle   Static induction
  Input voltage   70~1000Vac
  Frequency range   45-65Hz
  Auto-off   5 min. after power on
without detection
  Low battery warning   Power LED flashes at
4.6±0.1V or less
  Operating temperature
& humidity		  0°C ~ 40°C Max. 80% R.H.
  Storage temperature
& humidity		   -10°C ~ 50°C Max. 80% R.H.
  Cable length   Approx. 800mm
  Dimensions   115(L) × 65(W) × 40(D)mm
  Weight
(battery included)		   Approx. 370g
  Power source   1.5V (AA) × 4 Alkaline batteries
  Safety standard   EN 61010-1 CAT III  1000V /  CAT IV  600V
EN 61326-1
EN 61557-1  EN 61557-7
