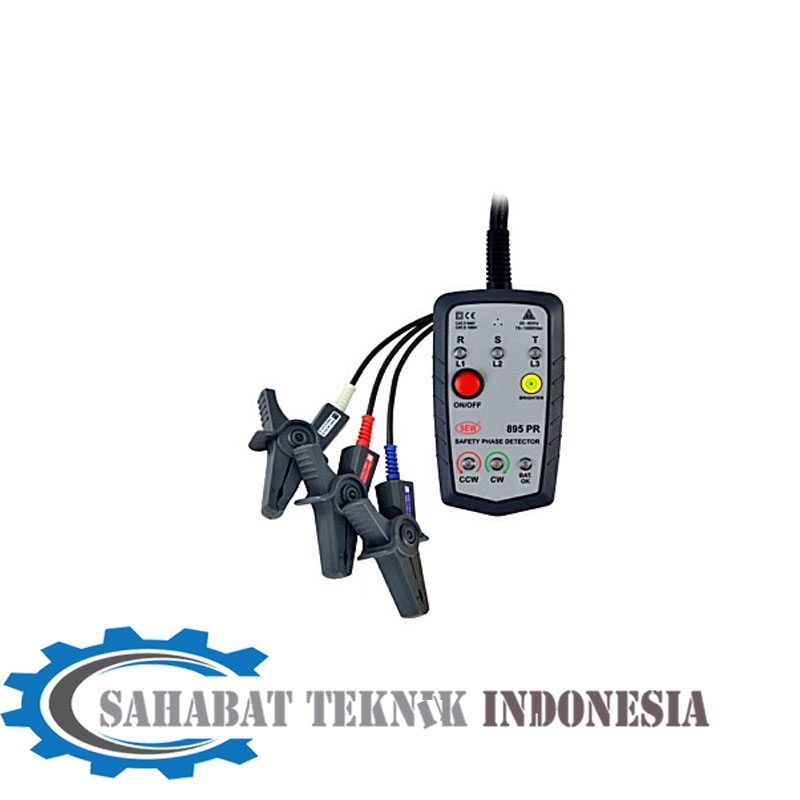

Jual SEW 895 PR Non-Contact Type Phase Sequence Indicator

Jual SEW 895 PR Non-Contact Type Phase Sequence Indicator

Spesifikasi SEW 895 PR

 SPECIFICATIONS
  Measurement principle   Static induction
  Input voltage   75~1000Vac
  Frequency range   45-65Hz
  Auto-off   5 min. after power on
without detection
  Low battery warning   Power LED flashes at
7V ± 0.2 or less
  Operating temperature
& humidity		  0°C ~ 40°C Max. 80% R.H.
  Storage temperature
& humidity		   -10°C ~ 50°C Max. 80% R.H.
  Cable length   Approx. 800mm
  Dimensions   128(L) × 72(W) × 44(D)mm
  Weight
(battery included)		   Approx. 380g
  Power source   9V (6LF22) × 1
  Safety standard   EN 61010-1 CAT III 1000V / CAT IV  600V
EN 61326-1  EN 61557-1
EN 61557-7
Kategori: , Tag:

Deskripsi

Jual SEW 895 PR Non-Contact Type Phase Sequence Indicator

Deskripsi SEW 895 PR

 FEATURES
● Non-contact detector clips. No metal contact points to
advocate greater safety.
● Two functions in one unit : open phase and phase
sequence detection.
● Designed for checking a wider range of 3-phase power
sources.
● LED display lights with buzzer indicator.
● Brightness button feature for better visibility in dimly lit
areas or sunlight.
● Magnetic mounting feature.
  SPECIFICATIONS
  Measurement principle   Static induction
  Input voltage   75~1000Vac
  Frequency range   45-65Hz
  Auto-off   5 min. after power on
without detection
  Low battery warning   Power LED flashes at
7V ± 0.2 or less
  Operating temperature
& humidity		  0°C ~ 40°C Max. 80% R.H.
  Storage temperature
& humidity		   -10°C ~ 50°C Max. 80% R.H.
  Cable length   Approx. 800mm
  Dimensions   128(L) × 72(W) × 44(D)mm
  Weight
(battery included)		   Approx. 380g
  Power source   9V (6LF22) × 1
  Safety standard   EN 61010-1 CAT III 1000V / CAT IV  600V
EN 61326-1  EN 61557-1
EN 61557-7
