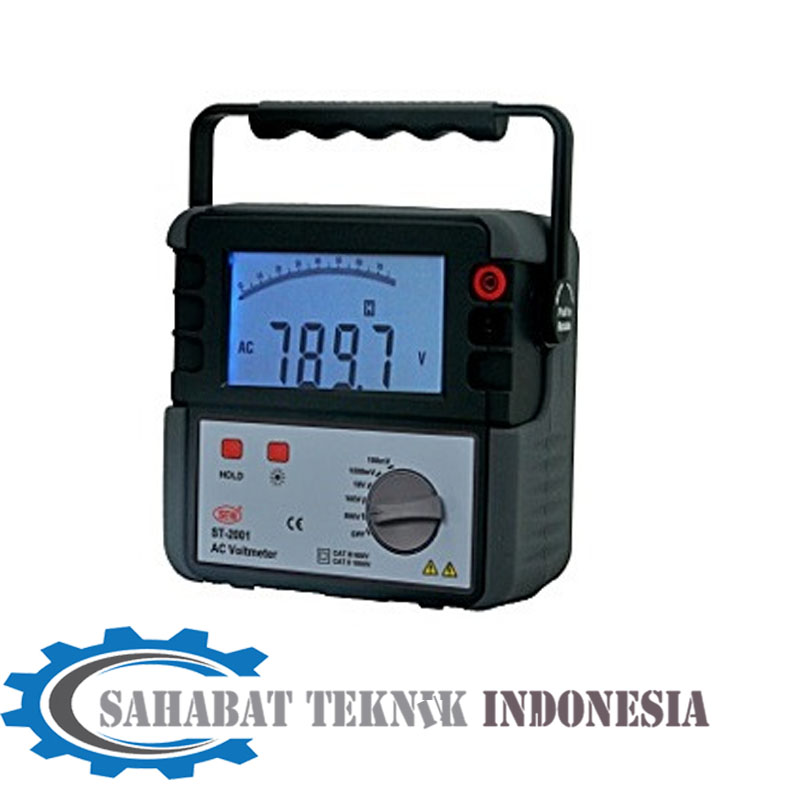

Jual SEW ST-2001 ACV Digital Portable Panel Meters

Jual SEW ST-2001 ACV Digital Portable Panel Meters

Spesifikasi SEW ST-2001 ACV

  AC Voltmeter

  Range

  Resolution

  Accuracy

 100.00mV

  10uV

50/60Hz : ±(0.3%rdg+5dgt)
40~400Hz : ±(0.5%rdg+6dgt)

  1000.0mV

 100uV

  10.000V

  1mV

  100.00V

  10mV

800.0V

  100mV
  SPECIFICATIONS
  Operating  temperature
& humidity		   0°C ~ 40°C,
80% Max. R. H.
  Storage temperature
& humidity		   -10°C ~ 50°C,
80% Max. R. H.
  Dimensions
(with holster)		   177 (L) x 200 (W) x 105 (D)mm
  Weight
(battery included)		   Approx. 1190g
  Power source   1.5V (AA) x 6
  Safety standard   EN 61010-1
EN 61326-1



Kategori: , Tag:

Deskripsi

Jual SEW ST-2001 ACV Digital Portable Panel Meters

Deskripsi SEW ST-2001 ACV

 FEATURES
● Big-size LCD (112 x 59mm)
● Backlight function.
● Analog scale with Bar-graph for viewing. (100 bars)
● 10000 counts (high resolution).
● DCV Ranges: 99.99mV~999.9V (ST-2001 DCV).
● ACV Ranges: 99.99mV~800.0V (ST-2001 ACV).
● 5 manual ranges controlled by rotary switch.
● Data Hold function
● Low battery indication
● 9V power supply
● Best resolution of 0.01mV (10uV)
● Precision meter for factory maintenance, field servicing and
educational purposes.
● With an optical USB to RS-232 data transmission cable. (DCV-R & ACV-R)
● 2 optical LEDs are built-in for data transfer. (DCV-R & ACV-R)
● Well isolated to contact. (DCV-R & ACV-R)
● The software is included (Compact disc). (DCV-R & ACV-R)
  SPECIFICATIONS
  AC Voltmeter

  Range

  Resolution

  Accuracy

 100.00mV

  10uV

50/60Hz : ±(0.3%rdg+5dgt)
40~400Hz : ±(0.5%rdg+6dgt)

  1000.0mV

 100uV

  10.000V

  1mV

  100.00V

  10mV

800.0V

  100mV
  SPECIFICATIONS
  Operating  temperature
& humidity		   0°C ~ 40°C,
80% Max. R. H.
  Storage temperature
& humidity		   -10°C ~ 50°C,
80% Max. R. H.
  Dimensions
(with holster)		   177 (L) x 200 (W) x 105 (D)mm
  Weight
(battery included)		   Approx. 1190g
  Power source   1.5V (AA) x 6
  Safety standard   EN 61010-1
EN 61326-1
