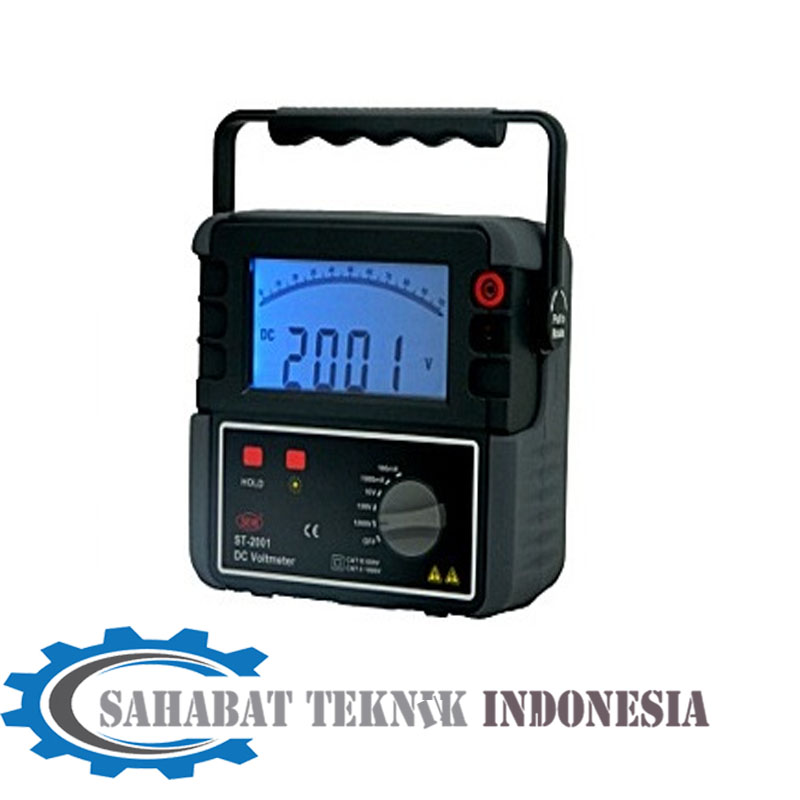

Jual SEW ST-2001 DCV-R Digital Portable Panel Meter
Spesifikasi SEW ST-2001 DCV-R
| DC Voltmeter | ||
|
Range |
Resolution |
Accuracy |
|
100.00mV |
10uV |
±(0.1%rdg+4dgt) |
|
1000.0mV |
100uV |
|
|
10.000V |
1mV |
|
|
100.00V |
10mV |
|
|
1000.0V |
100mV |
|
| SPECIFICATIONS | ||
| Operating temperature & humidity |
0°C ~ 40°C, 80% Max. R. H. |
|
| Storage temperature & humidity |
-10°C ~ 50°C, 80% Max. R. H. |
|
| Dimensions (with holster) |
177 (L) x 200 (W) x 105 (D)mm | |
| Weight (battery included) |
Approx. 1190g | |
| Power source | 1.5V (AA) x 6 | |
| Safety standard | EN 61010-1 EN 61326-1 |
|
Deskripsi
Jual SEW ST-2001 DCV-R Digital Portable Panel Meter
Deskripsi SEW ST-2001 DCV-R
| FEATURES | |||||||||||||||||||||||||||||||||||||||||||
|
● Big-size LCD (112 x 59mm)
● Backlight function. ● Analog scale with Bar-graph for viewing. (100 bars) ● 10000 counts (high resolution). ● DCV Ranges: 99.99mV~999.9V (ST-2001 DCV). ● ACV Ranges: 99.99mV~800.0V (ST-2001 ACV).
● 5 manual ranges controlled by rotary switch. ● Data Hold function ● Low battery indication ● 9V power supply ● Best resolution of 0.01mV (10uV) ● Precision meter for factory maintenance, field servicing and educational purposes. ● With an optical USB to RS-232 data transmission cable. (DCV-R & ACV-R) ● 2 optical LEDs are built-in for data transfer. (DCV-R & ACV-R)
● Well isolated to contact. (DCV-R & ACV-R)
● The software is included (Compact disc). (DCV-R & ACV-R)
|
|||||||||||||||||||||||||||||||||||||||||||
| SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
