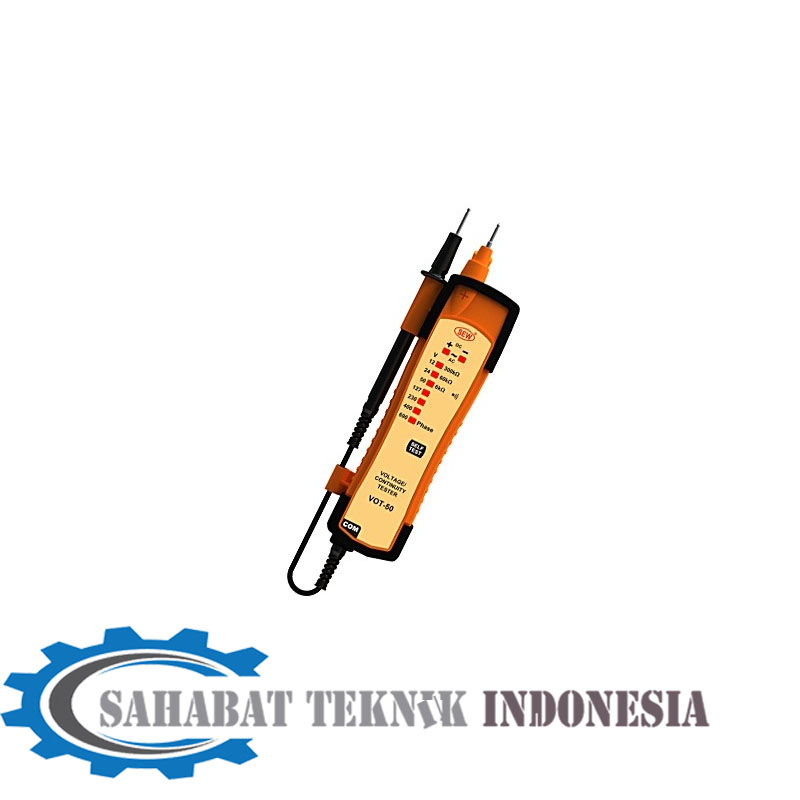

Jual SEW VOT-50 Voltage/Continuity Testers
Spesifikasi SEW VOT-50
| Voltage test | 12V to 690V AC/DC | |
| Voltage range | AC : 12V,24V,50V,127V,230V,400V,690V DC : 12V,24V,50V,127V,230V,400V,690V |
|
| Flashlight | ––– | |
| Working frequency | 40 to 400 Hz | |
| Voltage protection | 1000V DC / 700V AC | |
| Continuity range | 6kΩ | |
| Resistance range | 6kΩ,60kΩ,300kΩ | |
| Operating temperature | 0℃ to 40℃ | |
| Operating humidity | 80% R.H. | |
| Probe distance | 19mm apart | |
| Dimensions | 206(L) x 58(W) x 42(D)mm | |
| Weight (battery included) |
Approx. 190g | |
| Power source | 9V(6F22) x 1 | |
| Safety standard | EN 61010-1 CAT III 600V EN 61243-3 EN 61326-1 |
|
Deskripsi
Jual SEW VOT-50 Voltage/Continuity Testers
Deskripsi SEW VOT-50
| FEATURES | |||||||||||||||||||||||||||||||||||||||||||||||
| ● Voltage test: 12V to 690V AC/DC (7 LEDs) with indication by buzzer. ● Voltage range: 12V, 24V, 50V, 127V, 230V, 400V, 690V. ● Polarity test: LED +/- ● Audible continuity test ● Self-test button to ensure proper function of the device prior to testing. ● Waterproof design, protection class: IP54 ● Phase / Neutral identification ● Integrated storage clips for test probe. ● Rubberized injection molding. |
|||||||||||||||||||||||||||||||||||||||||||||||
| SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
