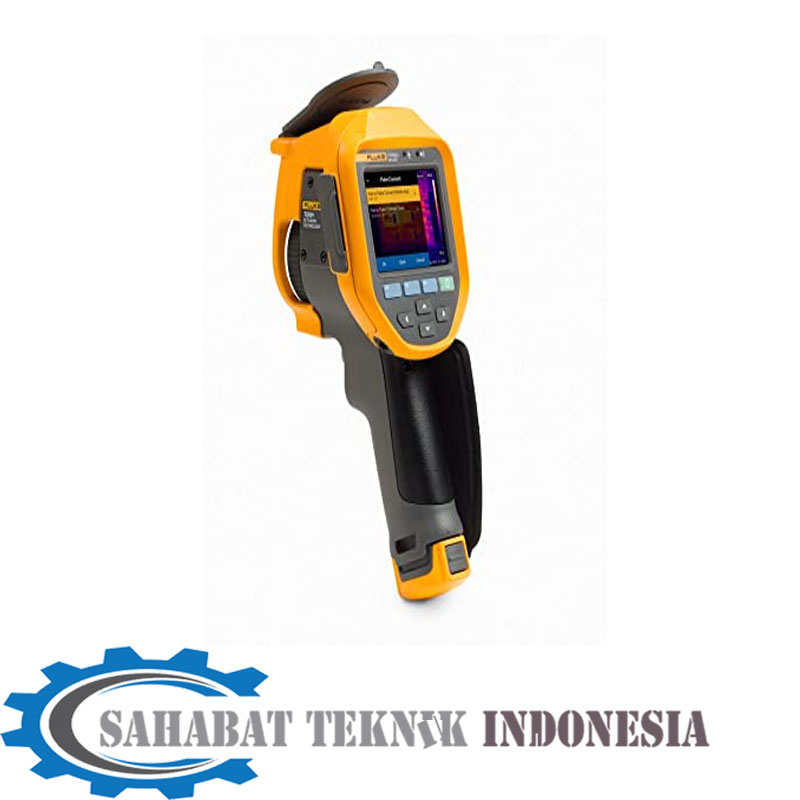

Jual Thermal Camera Fluke Ti300+
Specifications: Fluke Ti300+ Thermal Camera
| Key features | |
|---|---|
| IFOV with standard lens (spatial resolution) | 1.85 mRad, D:S 532:1 |
| Detector resolution | 320 x 240 |
| SuperResolution | No |
| Infrared Resolution | 76,800 pixels |
| MultiSharp™ Focus | No |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Ruggedized touchscreen display | 3.5 inch (landscape) 640 x 480 LCD |
| Rugged, ergonomic design for one-handed use | Yes |
| Digital zoom | No |
| Temperature measurement | |
|---|---|
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to 650 °C (-4 °F to 1202 °F) |
| Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
| Thermal sensitivity (NETD)* | ≤ 0.075 °C at 30 °C target temp (75 mK) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| *Best possible | |
| Wireless connectivity | |
|---|---|
| To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) | |
| Fluke Connect® app compatible | Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect® Assets optional software | Through the desktop, assign images to assets, easily compare measurement types in one location and create reports |
| Fluke Connect® Instant Upload | Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
| Fluke Connect® tool compatible | Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen |
| IR-Fusion® technology | |
|---|---|
| Adds the context of the visible details to your infrared image | |
| AutoBlend™ mode | Min, Mid, Max IR plus full visible on camera; continously variable in software |
| Picture-In-Picture (PIP) | Yes |
| Built-in digital camera (visible light) | 5 MP |
| Lenses | ||
|---|---|---|
| Standard lens | IFOV (spatial resolution) | 1.85 mRad, D:S 532:1 |
| Field of view | 34 °H x 24 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Picture-In-Picture and full screen | |
| Optional 2x telephoto smart lens | IFOV (spatial resolution) | 0.93mRad, D:S 1529:1 |
| Field of view | 17 °H x 12 °V | |
| Minimum focus distance | 45 cm (approx. 18 in) | |
| IR-Fusion® technology | Picture-In-Picture and full screen | |
| Optional 4x telephoto smart lens | IFOV (spatial resolution) | 0.46 mRad, D:S 2941:1 |
| Field of view | 6 °H x 4.5 °V | |
| Minimum focus distance | 1.5 m (approx. 60 in) | |
| IR-Fusion® technology | N/A | |
| Optional wide-angle smart lens | IFOV | 2.62 mRad, D:S 377:1 |
| Field of view | 48 °H x 34 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Full screen | |
| Level and span | Smooth auto and manual scaling |
|---|---|
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
| Data storage and image capture | |
|---|---|
| Extensive memory options | Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud™ for permanent storage |
| Image capture, review, save mechanism | One-handed image capture,review, and save capability |
| Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
| Memory review | Thumbnail and fullscreen review |
| Software | Full analysis and reporting software with access to the Fluke Connect system |
| Export file formats with SmartView® software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required |
| IR-PhotoNotes™ | Yes (2 images) |
| Text annotation | Yes |
| Video recording | No |
| File formats video | No |
| Streaming video (remote display) | No remote display through Fluke Connect |
| Remote control operation | Remote display only through Fluke Connect with HDMI connection. No remote control. |
| Auto capture (temperature and interval) | No |
| Battery | |
|---|---|
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life | 2-3 hours per battery (*Actual life varies depending on settings and usage) |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable sleep and power off modes |
| Color palettes | |
|---|---|
| Standard palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| General specifications | |
|---|---|
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | No |
| Center box | No |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10% to 95% non-condensing |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15 Subpart B |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
| Shock | 25 g, IEC 68-2-29 |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
| Size (H x W x L) | 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
| Weight (battery included) | 1.04 kg (2.3 lb) |
| Enclosure rating | IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
Deskripsi
Jual Thermal Camera Fluke Ti300+
Deskripsi Fluke Ti300+ Thermal Camera
Fluke Ti300 + Kamera Termal
Resolusi 320 x 240
Tes drop 2 meter
LaserSharp ™ Auto Focus
Fokus manual atau otomatis
Ukur hingga 650 ° C
Tunduk pada Kontrol Ekspor
Fluke Ti300 + Kamera Termal
Memimpin tim pemeliharaan industri membutuhkan kombinasi unik keterampilan komunikasi, pengetahuan industri, dan keahlian teknis. Menerapkan pekerjaan standar dan program pemeliharaan preventif lebih dari sekadar baik untuk bisnis – ini juga menyelaraskan tim Anda dengan tujuan bersama yaitu menjaga dan menjalankan pabrik dengan aman dan efisien. Memilih alat yang tepat dapat membuat perbedaan yang signifikan dalam keberhasilan jenis program ini.
Fluke Ti300 + membantu tim menemukan masalah sebelum masalah terbentuk sepenuhnya. Ini memiliki resolusi dan akurasi yang diperlukan untuk secara jelas mengungkapkan perbedaan suhu atau menunjukkan perubahan panas progresif dari waktu ke waktu. Dengan LaserSharp ™ AutoFocus, Ti300 + memastikan gambar yang fokus – setiap saat. Dengan sentuhan tombol, gunakan pengukur jarak laser bawaan untuk menghitung dan menampilkan jarak ke target yang ditentukan pada layar kamera dan memotret gambar dalam fokus. Yang paling penting, pembacaan suhu dari dalam gambar fokus akan sangat akurat. Aktifkan tim Anda untuk mendapatkan gambar yang jelas dengan tetap menjaga jarak yang lebih aman dari peralatan operasi.
Agar gambar termal menggambarkan masalah, Anda perlu mengetahui peralatan Anda dan memahami perbedaan halus antara suhu operasi normal dan abnormal. Anda juga perlu percaya diri dalam kemampuan Anda untuk mengambil gambar termal yang akurat dan memiliki kamera termal Fluke Ti300 + dengan LaserSharp AutoFocus membuat mengambil semuanya menjadi lebih mudah. Terakhir, Anda memerlukan kamera termal yang cukup kuat untuk menangkap gambar inframerah berkualitas walaupun itu jatuh (hingga dua meter).
Specifications: Fluke Ti300+ Thermal Camera
| Key features | |
|---|---|
| IFOV with standard lens (spatial resolution) | 1.85 mRad, D:S 532:1 |
| Detector resolution | 320 x 240 |
| SuperResolution | No |
| Infrared Resolution | 76,800 pixels |
| MultiSharp™ Focus | No |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Ruggedized touchscreen display | 3.5 inch (landscape) 640 x 480 LCD |
| Rugged, ergonomic design for one-handed use | Yes |
| Digital zoom | No |
| Temperature measurement | |
|---|---|
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to 650 °C (-4 °F to 1202 °F) |
| Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
| Thermal sensitivity (NETD)* | ≤ 0.075 °C at 30 °C target temp (75 mK) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| *Best possible | |
| Wireless connectivity | |
|---|---|
| To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) | |
| Fluke Connect® app compatible | Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect® Assets optional software | Through the desktop, assign images to assets, easily compare measurement types in one location and create reports |
| Fluke Connect® Instant Upload | Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
| Fluke Connect® tool compatible | Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen |
| IR-Fusion® technology | |
|---|---|
| Adds the context of the visible details to your infrared image | |
| AutoBlend™ mode | Min, Mid, Max IR plus full visible on camera; continously variable in software |
| Picture-In-Picture (PIP) | Yes |
| Built-in digital camera (visible light) | 5 MP |
| Lenses | ||
|---|---|---|
| Standard lens | IFOV (spatial resolution) | 1.85 mRad, D:S 532:1 |
| Field of view | 34 °H x 24 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Picture-In-Picture and full screen | |
| Optional 2x telephoto smart lens | IFOV (spatial resolution) | 0.93mRad, D:S 1529:1 |
| Field of view | 17 °H x 12 °V | |
| Minimum focus distance | 45 cm (approx. 18 in) | |
| IR-Fusion® technology | Picture-In-Picture and full screen | |
| Optional 4x telephoto smart lens | IFOV (spatial resolution) | 0.46 mRad, D:S 2941:1 |
| Field of view | 6 °H x 4.5 °V | |
| Minimum focus distance | 1.5 m (approx. 60 in) | |
| IR-Fusion® technology | N/A | |
| Optional wide-angle smart lens | IFOV | 2.62 mRad, D:S 377:1 |
| Field of view | 48 °H x 34 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Full screen | |
| Level and span | Smooth auto and manual scaling |
|---|---|
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
| Data storage and image capture | |
|---|---|
| Extensive memory options | Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud™ for permanent storage |
| Image capture, review, save mechanism | One-handed image capture,review, and save capability |
| Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
| Memory review | Thumbnail and fullscreen review |
| Software | Full analysis and reporting software with access to the Fluke Connect system |
| Export file formats with SmartView® software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required |
| IR-PhotoNotes™ | Yes (2 images) |
| Text annotation | Yes |
| Video recording | No |
| File formats video | No |
| Streaming video (remote display) | No remote display through Fluke Connect |
| Remote control operation | Remote display only through Fluke Connect with HDMI connection. No remote control. |
| Auto capture (temperature and interval) | No |
| Battery | |
|---|---|
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life | 2-3 hours per battery (*Actual life varies depending on settings and usage) |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable sleep and power off modes |
| Color palettes | |
|---|---|
| Standard palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| General specifications | |
|---|---|
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | No |
| Center box | No |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10% to 95% non-condensing |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15 Subpart B |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
| Shock | 25 g, IEC 68-2-29 |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
| Size (H x W x L) | 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
| Weight (battery included) | 1.04 kg (2.3 lb) |
| Enclosure rating | IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
