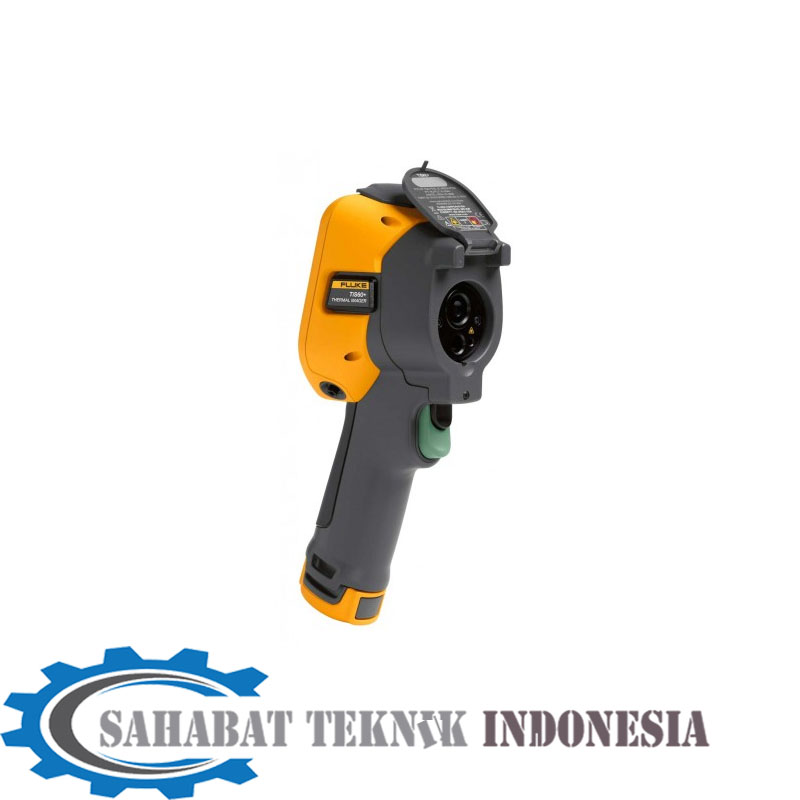

Jual Thermal Camera Fluke TiS60+
Spesifikasi
| Key features | |
| IFOV (spatial resolution) | 1.86 mRad, D:S 532:1 |
| Infrared resolution | 320 x 240 (76,800 pixels) |
| Field of view | 34.1 °H x 25.6 °H |
| Focus system | Fixed |
| Minimum focus distance | 46 cm (18 in) |
| Ruggedized display | 3.5 inch (8.9 cm landscape) 320 x 240 LCD |
| Ergonomic design | Designed for one-handed use |
| Temperature measurement | |
| Temperature range (not calibrated below -10 °C) | -20 °C to 400 °C (-4 °F to 752 °F) |
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| Thermal sensitivity (NETD) | ≤ 0.045 °C at 30 °C target temp (45 mK) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | No |
| Wireless connectivity | |
| Wireless connectivity | Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available) |
| Fluke™ Connect app compatible | Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect Assets optional software | Yes*, assign images to assets and create work orders. Easily compare measurement types – whether mechanical, electrical or infrared images – in one location |
| IR Fusion® technology | |
| IR Fusion® technology | Yes |
| AutoBlend™ mode | Yes |
| Picture-In-Picture (PIP) | Yes |
| Built-in digital camera (visible light) | 5MP |
| Level and span | |
| Level and span | Smooth auto and manual scaling |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.5 °C (4.5 °F) |
| Minimum span (in auto mode) | 5 °C (9.0 °F) |
| Data storage and image capture | |
| Extensive memory options | Internal 4GB memory and 4GB micro SD card |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Image file formats | Non-radiometric BMP or JPEG or fully-radiometric is2 |
| Memory review | Yes |
| Software | Fluke Connect desktop software – full analysis and reporting software with access to the Fluke Connect system |
| Analyze and store radiometric data on a PC | Yes |
| Export file formats with Fluke Connect software | is2, BMP, GIF, JPEG, PNG, TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera; Bluetooth headset required (sold separately) |
| IR-PhotoNotes | Yes – 3 images |
| Auto capture (temperature and interval) | Yes |
| Battery | |
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery pack with five-segment LED display to show charge level |
| Battery life | 4 hours continuous use per battery pack |
| Battery charging time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable |
| Color palettes | |
| Standard palettes | 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra contrast palettes | 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
| General specifications | |
| Laser pointer | Yes |
| Frame rate | < 9 Hz or 30 Hz |
| Color alarms | High temperature, low temperature, isotherms (within range) |
| Infrared spectral band | 7.5 μm to 14 μm |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10 % to 95 %, non-condensing |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | 3 |
| User defined measurement boxes | Expandable-contractible measurement box |
| Hard case | Rugged hard carrying case with soft transport bag, including adjustable strap |
| Safety standards | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | RCM IEC 61326-1 |
| US FCC | EN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3 |
| Vibration | 2G, IEC 68-2-6 |
| Shock | 25G, IEC 68-2-29 |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop |
| Sized (H x W x L) | 26.7 cm x 10.1 cm x 14.5 cm (10.5 in x 4.0 in x 5.7 in) |
| Weight (battery included) | 0.72 kg (1.6 lb.) |
| Enclosure rating | IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard) |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
| RoHS compliant | Yes |
Deskripsi
Jual Thermal Camera Fluke TiS60+
Deskripsi Fluke TiS60+ Thermal Camera
Fluke TiS60 + Kamera Termal
Resolusi 320 x 240
Tes drop 2 meter
Teknologi IR Fusion ™ untuk konteks
Memperbaiki fokus
Ukur hingga 400 ° C
Tunduk pada Kontrol Ekspor
Fluke TiS60 + Kamera Termal
Tingkatkan kinerja Anda atau tim Anda dengan resolusi 320 x 240. Gambar inframerah yang diambil dengan TiS60 + menangkap perbedaan suhu yang lebih kecil dari jauh. Jika Anda baru mengenal pencitraan termal atau kamera Anda sedang digunakan oleh tim dengan berbagai tingkat pengalaman pencitraan termal, TiS60 + menawarkan fokus tetap dengan kemampuan untuk menangkap gambar berkualitas dari jauh.
The TiS60 + memungkinkan Anda untuk melihat hal-hal yang tidak terlihat oleh mata dan mengungkapkan masalah yang tidak dapat dideteksi dengan teknologi lain. Ini adalah alat yang mudah digunakan dan dapat diandalkan yang dapat diandalkan oleh tim.
Mudah digunakan fokus tetap
Layar LCD 3,5 inci
Pengambilan gambar dengan satu tangan, tinjau dan simpan kemampuan
Kompatibilitas Fluke Connect ™ untuk berbagi secara nirkabel
Seringkali tantangan besar berikutnya dengan gambar inframerah adalah untuk memastikan bahwa gambar yang diambil oleh tim dapat dengan cepat ditambahkan ke perintah kerja. TiS60 + memiliki fitur IR Photo Notes yang memudahkan ini. Mereka memberi operator kamera cara sederhana untuk menambahkan gambar yang terkait dengan gambar yang mendokumentasikan nama peralatan atau lokasi ruangan yang terkait dengan gambar termal sehingga orang yang membuat perintah kerja dapat mengirim teknisi ke lokasi yang tepat untuk perbaikan.
Bersiaplah dengan semua yang Anda butuhkan untuk menetapkan garis dasar untuk peralatan Anda, membuat program pemeliharaan preventif dan menetapkan pekerjaan standar. Fluke TiS60 + memberi Anda data termal yang diperlukan untuk menyelesaikan pekerjaan.
