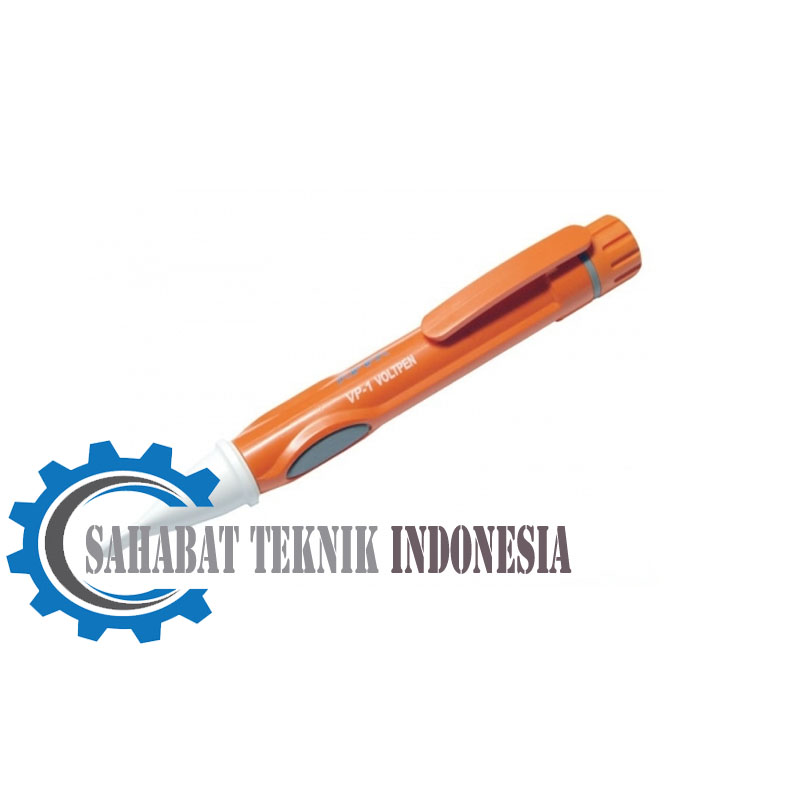

APPA VP-1 VoltPen Voltage Detector
Summary APPA VP-1
- Range: 200V ~ 1000V AC
- Flashing and beeping once a live cable was detected
- Phase finding on socket outlets
- Unique variable beeping according to AC signal amplitude
- Ergonomically designed soft grip for better holding when detecting
- Industrial rugged design for heavy duty use
- Compact design with convenient battery cap
- CAT IV 1000V Safety Standard
Specifications
- Voltage sensing ranges: 200V ~ 1000V AC
- Detection tip style: Blade or round, depend on models
- Light Source: One high intensity red LED
- Operating Temperature: 0°C ~ 50°C
- Storage Temperature: -20°C ~ 60°C
- Safety: Designed to meet IEC 61010 & UL61010, CAT IV 1000V Safety Standard
- Power Requirement: IEC LR03, AM4 or AAA size 1.5V x 2
- Dimensions: 18mm(W) x 151mm(L) x 22mm(D)
- Weight: Approx. 120g
Scope of delivery APPA VP-1
- Voltage detector APPA VP-1 VoltPen
- Battery (installed)
- Manual
Deskripsi
Accessories Thermometer Hygrometer Temperature APPA 50SK, 50AK, 50PK, 50-IK
Accessories APPA ATL3N Test Leads
Jual Voltage Detector APPA VP-1 VoltPen
Description
- The standard set of test leads (red and black) with double insulation
- Length 1.3 m
- 10 A (1000 V / CAT II.)
- 2 mm probe – 4 mm insulated connector type dad (a curve of 90 degrees)
- 3-sided relief pad for easy retention
- Removable caps for protection against accidental contact in the circuit (with caps:. 1000 V / CAT III, 600 V / CAT IV cat.)
APPA 50SK Surface Thermocouple Probe Type-K (-0°C to 400°C) :
Description
- 50SK Surface Probe
- For flat or slightly convex surfaces.
- Ideal for measurement of hot rollers and plates.
- Measurement range: -0°C to 400°C (-32°F to 752°F).
APPA 50AK Air Thermocouple Probe Type-K (-196°C to 500°C) :
Description
- 50AK Air Probe.
- For air and gases.
- Measuring bead is protected by perforated Stainless Steel baffle.
- Not for immersion in liquid.
- Measurement range: -196°C to 500°C (-320°F to 932°F).
APPA 50PK Piercing Thermocouple Probe Type-K (-196°C to 800°C) :
Description
- 50PK Piercing Probe
- Suitabel for food service.
- Also suitable for liquids and gels.
- Measurement range: -196°C to 800°C (-320°F to 1472°F).
Thermocouple Type-K APPA 50IK Immersion Probe :
BRAND : APPA
Tip length : 12 cm
Handle length : 8,5 cm
Cable length : 1 meter
For liquids and gels.
Protected from tip to handle by inconel sheath.
Suitable for general temperature measurement applications.
Measurement range : -196 Degree Celcius to 800 Degree Celcius
